Same model may have multiple batches, images only for reference.

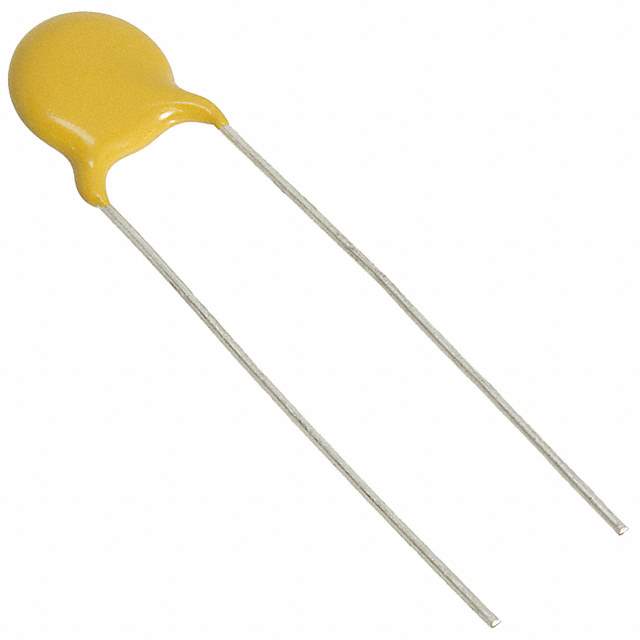

S103M47Z5UN6TL9RX1 Real Image
Same model may have multiple batches, images only for reference.

S103M47Z5UN6TL9RX1

Part No S103M47Z5UN6TL9RX1
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 10000PF 1KV Z5U RADIAL / 10000 pF ±20% 1000V (1kV) Ceramic Capacitor Z5U Radial, Disc
Datasheet
S103M47Z5UN6TL9RX1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Tape & Reel (TR)
Capacitance 10000 pF
Tolerance ±20%
Voltage - Rated 1000V (1kV)
Temperature Coefficient Z5U
Temperature Range - Operating -30°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.661" (16.80mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Straight
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Standard Package 1,000
Win Source Part Number 1130407-S103M47Z5UN6TL9RX1
Ultra Librarian 3D Model Ultra Librarian S103M47Z5UN6TL9RX1 CAD Model

Description

This is a ceramic capacitor with a capacitance of 10000 pF and a tolerance of ±20%.

  • Capacitance: 10000 pF
  • Tolerance: ±20%
  • Voltage Rating: 1000V (1kV)
  • Temperature Coefficient: Z5U
  • Package: Radial, Disc
  • Lead Style: Straight
  • Mounting Type: Through-Hole
  • Application: General Purpose
  • Packaging: Tape and Reel
  • Height (Seated): 0.661" (16.80mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Operating Temperature Range: -30°C ~ 125°C
  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
