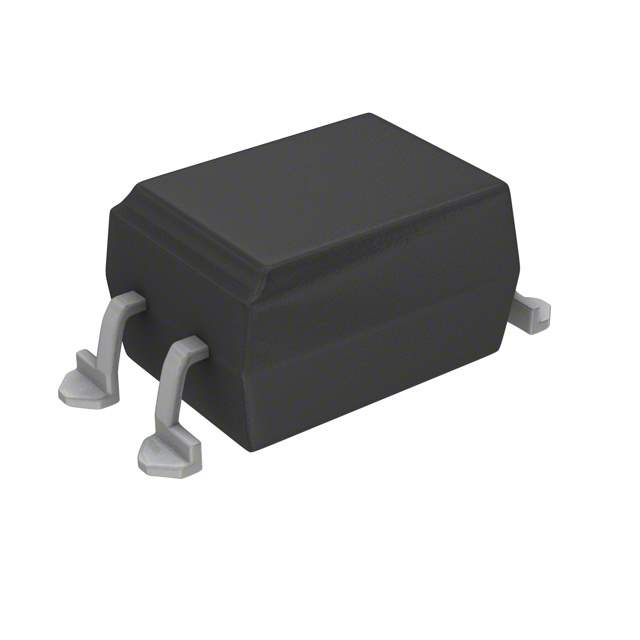

The Vishay SFH615AY-X008T is an optoisolator with a transistor, photovoltaic output.

• Output: Transistor, Photovoltaic Output
• Channel: Single-channel device
• Input Type: DC
• Output Type: Transistor
• Current DC Forward (If) (Max): 60mA
• Voltage Forward (Vf) (Typ): 1.25V
• Rise/Fall Time (Typ): 2μs, 25μs
• Current Output/Channel: 50mA
• Voltage Isolation: 5300Vrms
• Current Transfer Ratio (Min): 50% @ 5mA
• Voltage Output (Max): 70V
• Vce Saturation (Max): 400mV
• Current Transfer Ratio (Max): 150% @ 5mA
• Turn On/Turn Off Time (Typ): 2μs, 25μs
• Package/Case: 4-SMD, Gull Wing
• Supplier Device Package: 4-SMD
• Operating Temperature Range: -55°C to 100°C
