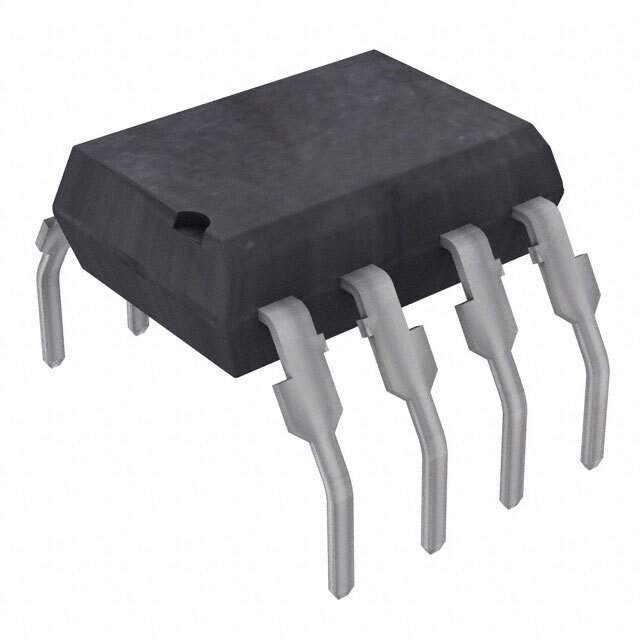

The Vishay 1243466-SFH6702-X006 is an optoisolator that belongs to the isolators category.

• Series: SFH6702
• Package Type: Tube
• Standard Package: 2,000 pieces
• Output Type: Push-pull, totem pole
• Data Rate: 5MBd
• Input Type: DC
• Current - DC Forward (If) (Max): 10mA
• Voltage - Forward (Vf) (Typ): 1.6V
• Rise/Fall Time (Typ): 40ns, 10ns
• Current - Output/Channel: 25 mA
• Number of Channels: 1
• Voltage - Isolation: 5300Vrms
• Inputs - Side 1/Side 2: 1/0
• Common Mode Transient Immunity (Min): 1kV/μs
• Propagation Delay tpLH / tpHL (Max): 300ns, 300ns
• Voltage - Supply: 4.5V ~ 15V
• Mounting Type: Through-hole
• Package/Case: 8-DIP (0.400", 10.16mm)
• Supplier Device Package: 8-DIP
• Temperature Range for Operating: -40°C to 85°C
• MSL Level: 1 (unlimited)
• REACH Status: REACH unaffected
• HTSUS: 8541.49.8000
• Manufacturer: Vishay Semiconductor Opto Division
• Base Product Number: SFH6702
• Product Status: Obsolete
