The SIHF8N50D-E3 is an n-channel power MOSFET from Vishay. This device is designed for high-voltage, high-speed switching applications. It utilizes advanced trench MOSFET technology to achieve a superior figure of merit (FOM), which translates to low on-resistance and gate charge, contributing to improved efficiency and reduced power losses in switching circuits.

Applications:

• Power supplies: Used in AC-DC and DC-DC power supplies for various electronic devices.
• Motor control: Employed in motor control circuits for driving and controlling the speed of motors.
• Lighting: Suitable for electronic ballast and LED lighting applications.
• High-frequency inverters: Used in inverter circuits for converting DC power to AC power.
• UPS (Uninterruptible Power Supplies): Found in UPS systems to provide backup power during power outages.

Features:

• Low on-resistance (RDS(on)): Minimizes conduction losses, leading to improved efficiency.
• Low gate charge (Qg): Reduces switching losses and improves switching speed.
• Avalanche rated: Can withstand transient avalanche conditions, enhancing reliability.
• Fast switching speed: Enables high-frequency operation in switching circuits.
• Lead (Pb)-free and RoHS compliant: Environmentally friendly, meeting regulatory requirements.

Benefits:

• High efficiency: Low RDS(on) and Qg contribute to reduced power losses and improved efficiency in power conversion applications.
• Improved thermal performance: Helps dissipate heat effectively, enhancing reliability and extending the lifespan of the device and the overall system.
• Simplified design: Fast switching speed simplifies the design of high-frequency switching circuits.
• Enhanced reliability: Avalanche rating provides robustness against voltage transients.
• Environmentally friendly: Pb-free and RoHS compliance ensures compliance with environmental regulations.

Additional Details:

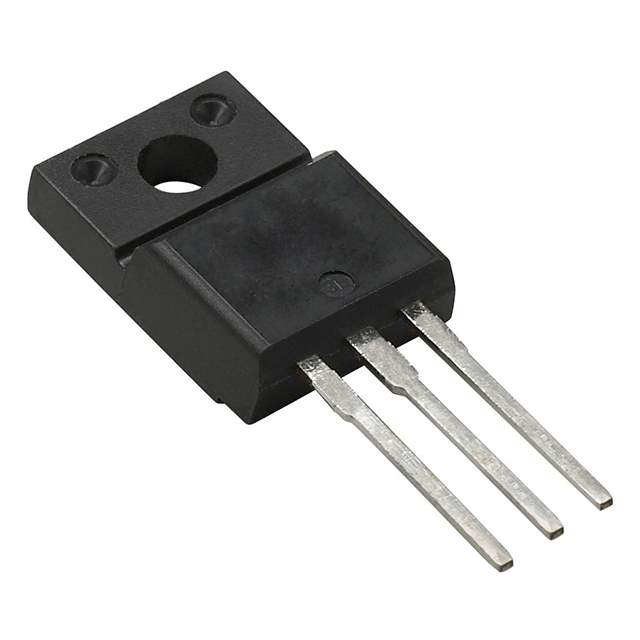

The SIHF8N50D-E3 has a drain-source voltage (VDS) rating of 500V and a continuous drain current (ID) rating of 8A. It is typically supplied in a TO-220AB package. The device's gate threshold voltage (VGS(th)) is typically around 3V. The operating junction temperature range is -55°C to +150°C. The specific RDS(on) value is dependent on the gate-source voltage (VGS) and the junction temperature but is typically very low. This MOSFET is designed for applications requiring efficient and reliable power switching capabilities.
