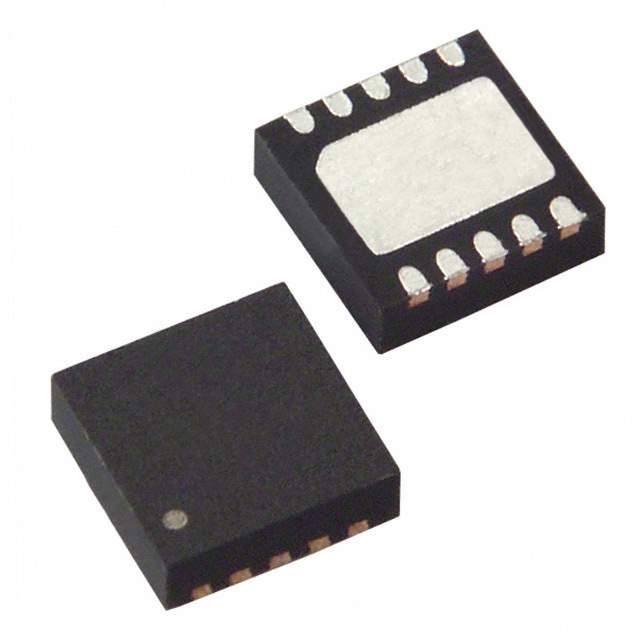

The SiP12116DMP-T1-GE4 is a high-efficiency synchronous buck regulator from Vishay. It's designed to provide a precise and stable output voltage from a higher input voltage, making it suitable for a variety of power management applications.

Applications

• Point-of-Load (POL) Regulators: Used to provide a regulated voltage to specific components on a circuit board.
• Embedded Systems: Powers microcontrollers, FPGAs, and other digital devices in embedded systems.
• Notebook Computers: Provides core voltage for CPUs and GPUs in laptops.
• Solid-State Drives (SSDs): Regulates the voltage for memory chips and controllers in SSDs.
• Networking Equipment: Powers ASICs and other components in routers and switches.

Features

• High Efficiency: Minimizes power loss and improves overall system efficiency.
• Synchronous Rectification: Uses MOSFETs as rectifiers to reduce power dissipation.
• Adjustable Output Voltage: Allows for customization of the output voltage to meet specific requirements.
• Integrated MOSFETs: Reduces external component count and simplifies design.
• Overcurrent Protection (OCP): Protects the regulator and the load from damage due to overcurrent conditions.
• Overvoltage Protection (OVP): Protects the load from damage due to overvoltage conditions.
• Thermal Shutdown: Shuts down the regulator if the junction temperature exceeds a safe limit.

Benefits

• Energy Savings: High efficiency reduces power consumption, leading to energy savings.
• Stable Output Voltage: Maintains a consistent output voltage under varying load and input voltage conditions.
• Flexibility: Adjustable output voltage allows for customization to meet specific application requirements.
• Compact Design: Integrated MOSFETs and small package reduce the overall size of the power supply.
• Robust Protection: Overcurrent, overvoltage, and thermal shutdown protect the regulator and the load from damage.

Technical Specifications

The SiP12116DMP-T1-GE4 typically has an input voltage range of 4.5V to 18V. The output voltage is adjustable from 0.6V to Vin. It can deliver a continuous output current of up to 6A. The switching frequency is typically adjustable. It has a typical efficiency of over 90%. It is typically packaged in a PowerPAK MLP5x5-30L package. The operating temperature range is usually between -40°C and +125°C. It requires external input and output capacitors and an inductor for proper operation.
