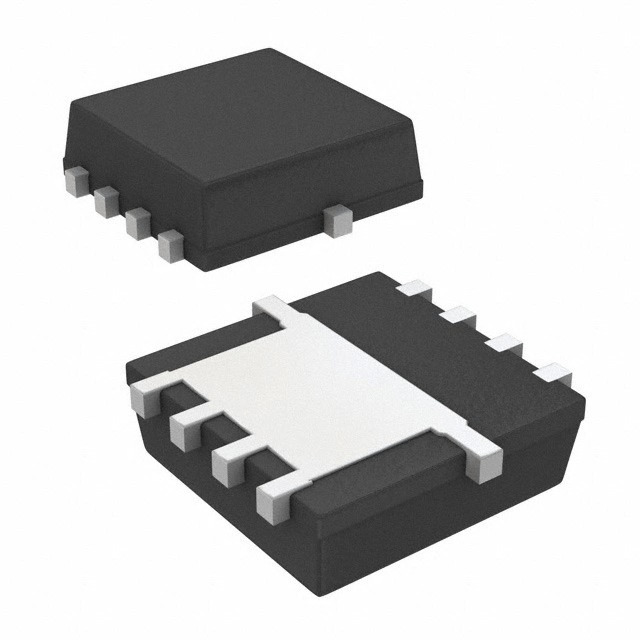

SIS780DN-T1-GE3 Vishay
Same model may have multiple batches, images only for reference.

SIS780DN-T1-GE3

Part No SIS780DN-T1-GE3
Manufacturer Vishay
Catalog HOT - SALES and EOL Components
Description N-Channel 30 V (D-S) MOSFET with Schottky Diode | MOSFET N-CH 30V 18A POWERPAK1212
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Packaging Reel
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 30V
Id - Continuous Drain Current 18A
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Maximum) at Id, Vgs 13.5mOhm at 15A, 10V
Gate Source Voltage(th) (Maximum) at Id 2.3V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 24.5nC at 10V
Gate Source Voltage (Maximum) ±20V
Input Capacitance (Ciss) (Maximum) at Vds 722pF at 15V
FET Feature Schottky Diode (Body)
Power Dissipation (Maximum) 27.7W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Supplier Device Package PowerPAK 1212-8
Manufacturer Package PowerPAK 1212-8
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 324248-SIS780DN-T1-GE3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SIS780DN-T1-GE3 CAD Model

Description

This Vishay Siliconix electronic component is a discrete semiconductor product with a Win Source part number of 324248-SIS780DN-T1-GE3 manufactured by Vishay Siliconix.

  • Win Source Part Number: 324248-SIS780DN-T1-GE3
  • Packaging: Reel
  • Mounting: SMD technology
  • FET Feature: Schottky Diode (Body)
  • Transistor Polarity: N-Channel
  • Drive Voltage (Rds On): Maximum 4.5V, Minimum 10V
  • Temperature Range: -55°C to 150°C
  • Maximum Power Dissipation: 27.7W
  • Supply and Demand Status: Balanced
