The SIZ342DT-T1-GE3 is a P-Channel MOSFET from Vishay Siliconix, designed for load switch and general switching applications. It is known for its low on-resistance (RDS(on)), which minimizes power loss and improves efficiency. The 'GE3' suffix indicates that the device is lead (Pb)-free and halogen-free, complying with environmental regulations.

Applications

• Load switching in portable devices
• Power management circuits
• Battery management systems
• DC-DC converters
• General purpose switching

Features

• Low on-resistance (RDS(on))
• Low gate threshold voltage (VGS(th))
• Fast switching speed
• Logic-level gate drive
• Lead (Pb)-free and Halogen-free

Benefits

• High energy efficiency
• Extended battery life in portable applications
• Simplified gate drive circuitry
• Reduced power dissipation
• Environmentally friendly

Additional Details

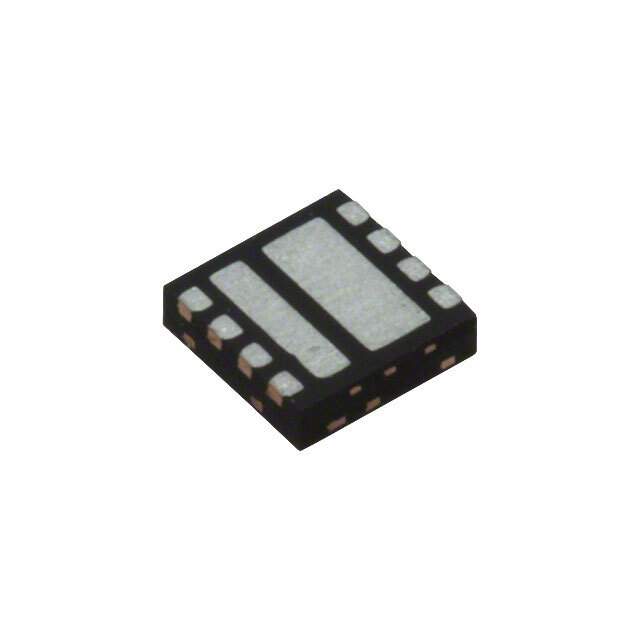

The SIZ342DT-T1-GE3 operates with a gate-source voltage (VGS) down to low voltage levels, making it suitable for logic-level drive applications. Its low RDS(on) minimizes conduction losses, resulting in cooler operation and improved system efficiency. The device is typically surface-mounted (SMD) and available in a PowerPAK SO-8 package which enables efficient heat dissipation. The absolute maximum drain-source voltage (VDS) is usually around -20V or -30V. It is important to consult the datasheet for precise specifications, including maximum drain current, gate charge, and thermal resistance, to ensure safe and optimal operation in the intended application. Its compact size and performance characteristics make it a popular choice in space-constrained portable electronic devices.
