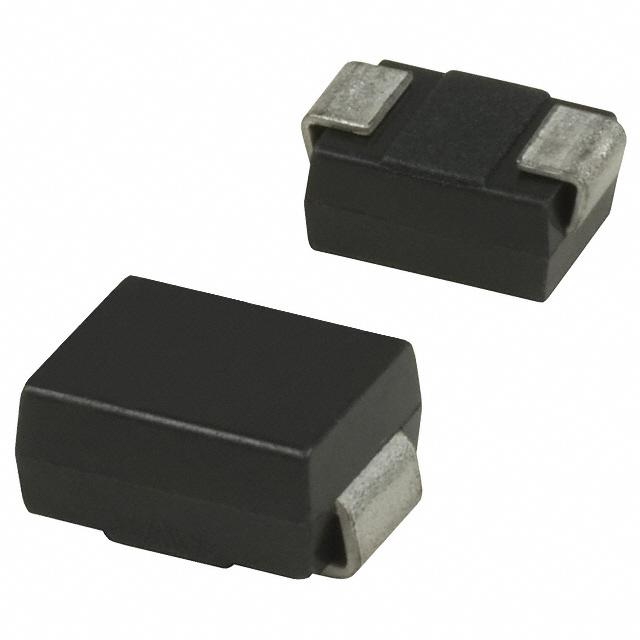

The SMBJ12A/52 is a transient voltage suppressor (TVS) diode manufactured by Vishay. It is specifically engineered to protect sensitive electronic components from voltage transients resulting from phenomena like lightning strikes, inductive load switching, and electrostatic discharge (ESD). Belonging to the SMBJ series, this unidirectional TVS diode is noted for its compact form factor and its capability to handle high surge currents.

Applications

• Protection of sensitive electronic equipment
• Surge protection for data lines
• Overvoltage protection in I/O interfaces
• Use in consumer electronics
• Industrial control equipment

Features

• Unidirectional TVS diode
• Surface mount SMB package
• Low profile design
• Glass passivated junction
• Excellent clamping capability
• Fast response time
• High temperature soldering guaranteed
• Low incremental surge resistance

Benefits

• Reliable protection against transient voltage events
• Small size allows for use in space-constrained applications
• Fast response minimizes voltage overshoot during transients
• Enhances the lifespan and reliability of protected electronics
• Easy integration into circuit designs

Technical Specifications

The SMBJ12A/52 is characterized by a standoff voltage of 12 V, with a breakdown voltage between 13.3 V and 14.7 V. The peak pulse power dissipation is rated at 600 W. The clamping voltage at peak pulse current is typically 21.5 V. The operating temperature range extends from -65°C to +150°C.

Vishay utilizes a glass-passivated junction in the SMBJ12A/52, which contributes to its high reliability and stable performance. Its construction adheres to stringent quality standards, making it appropriate for applications requiring robust overvoltage protection. The design ensures minimal impact on circuit performance while providing effective transient suppression.
