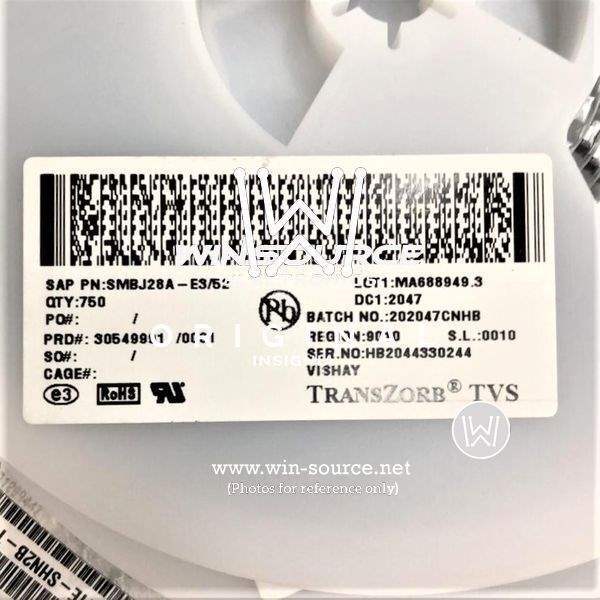

Same model may have multiple batches, images only for reference.

SMBJ28A-E3/52

Name: SMBJ28A-E3/52
Brand: Vishay
SKU: 328039
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMBJ28A-E3/52
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS Diode Single Uni-Dir 28V 600W 2-Pin SMB T/R / TVS DIODE 28VWM 45.5VC SMB
Datasheet	SMBJ28A-E3/52 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	28V
Minimum Breakdown Voltage	31.1V
Max Clamping Voltage	45.5V
Peak Pulse Current(Ippm)	13.2A
Power Dissipation - Pd	600W
Applications	General Purpose
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	DO-214AA (SMBJ)
Win Source Part Number	029200-SMBJ28A-E3/52
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Quantity per package	750
Family Name	SMBJ28A
Introduction Date	July 04, 2006
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian SMBJ28A-E3/52 CAD Model

Alternative Products

Description

The Vishay SMBJ28A-E3/52 is a high-popular electronic component that is used in various applications.

Type: zener
Stand-off Voltage (Vwm): 28V
Minimum Breakdown Voltage: 31.1V
Peak Pulse Current(Ippm): 13.2A
Power Dissipation - Pd: 600W
Supply and Demand Status: sufficient
Packaging: reel - TR
Win Source Part Number: 029200-SMBJ28A-E3/52
Category: circuit protection
Case/Package: DO-214AA (SMBJ)
