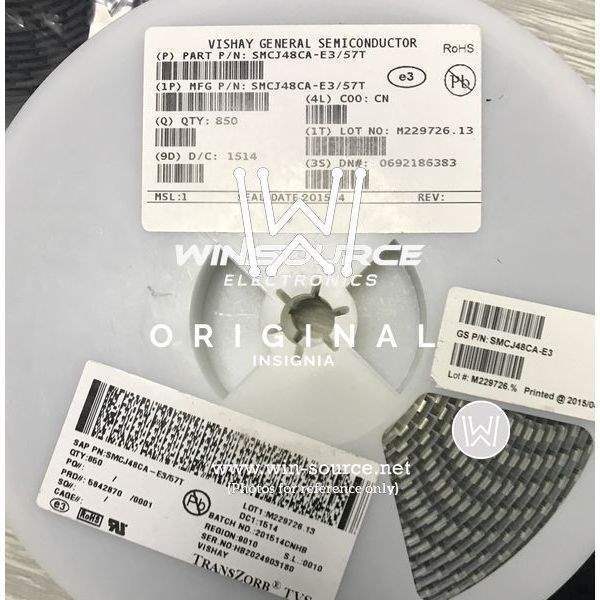

SMCJ48CA-E3/57T Vishay SMCJ48CA-E3/57T Real Image SMCJ48CA-E3/57T label picture
Same model may have multiple batches, images only for reference.
SMCJ48CA-E3/57T Vishay SMCJ48CA-E3/57T Real Image SMCJ48CA-E3/57T label picture
SMCJ48CA-E3/57T Vishay SMCJ48CA-E3/57T Real Image SMCJ48CA-E3/57T label picture
Same model may have multiple batches, images only for reference.

SMCJ48CA-E3/57T

Part No SMCJ48CA-E3/57T
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 48VWM 77.4VC SMC
Datasheet
SMCJ48CA-E3/57T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 48V
Minimum Breakdown Voltage 53.3V
Max Clamping Voltage 77.4V
Peak Pulse Current(Ippm) 19.4A
Power Dissipation - Pd 1500W (1.5kW)
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AB (SMCJ)
Win Source Part Number 1098057-SMCJ48CA-E3/57T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 850
Ultra Librarian 3D Model Ultra Librarian SMCJ48CA-E3/57T CAD Model

Description

The Vishay SMCJ48CA-E3/57T is a zener type electronic component that is used for general-purpose applications.

  • STAND-OFF voltage (Vwm): 48V
  • Minimum breakdown voltage: 53.3V
  • Max clamping voltage: 77.4V
  • Peak pulse current (Ippm): 19.4A
  • Power dissipation: 1500W (1.5kW)
  • Mounting: SMD (SMT)
  • Status: Active
  • Popularity: Medium
