Same model may have multiple batches, images only for reference.

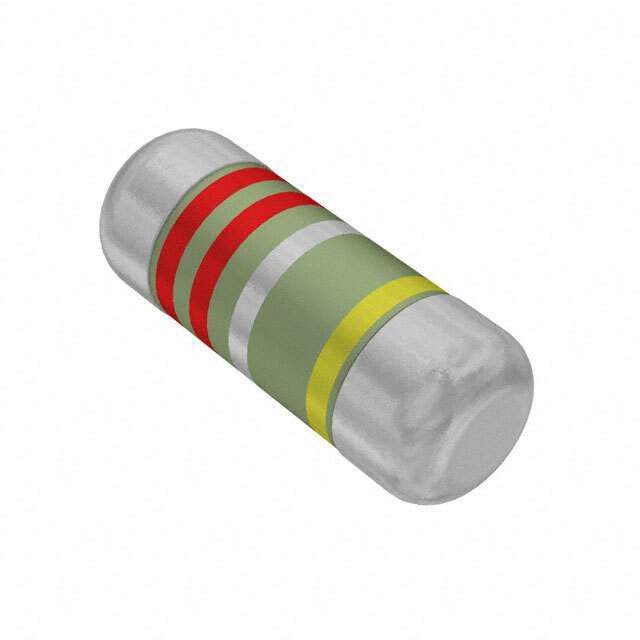

SMM02070B2207JBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070B2207JBP00

Part No SMM02070B2207JBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.22 OHM 5% 1W MELF / 220 mOhms ±5% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02070B2207JBP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series SMM0207
Package Tape & Reel
Resistance 220 mOhms
Tolerance ±5%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0207
Supplier Device Package MELF
Ratings AEC-Q200
Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names 749-SMM02070B2207JBP00CT,749-SMM02070B2207JBP00DKR,SMM02070B2207JBP00-ND,749-SMM02070B2207JBP00TR
Standard Package 1,500
Win Source Part Number 988259-SMM02070B2207JBP00
Ultra Librarian 3D Model Ultra Librarian SMM02070B2207JBP00 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components SMM0207 series chip resistor is a thin film resistor with a resistance of 220 mOhms and a power rating of 1W.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Resistance: 220 mOhms
  • Power Rating: 1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Features: Anti-sulfur, automotive AEC-Q200, and pulse withstanding properties
  • Packaging: Tape and reel
  • Standard Package: 1,500
  • Package/Case: MELF
  • Terminations: 2
  • Dimension: 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
  • Operating Temperature: -55°C to 155°C
  • AEC-Q200: Rated
  • Failure Rate: Not specified
