Same model may have multiple batches, images only for reference.

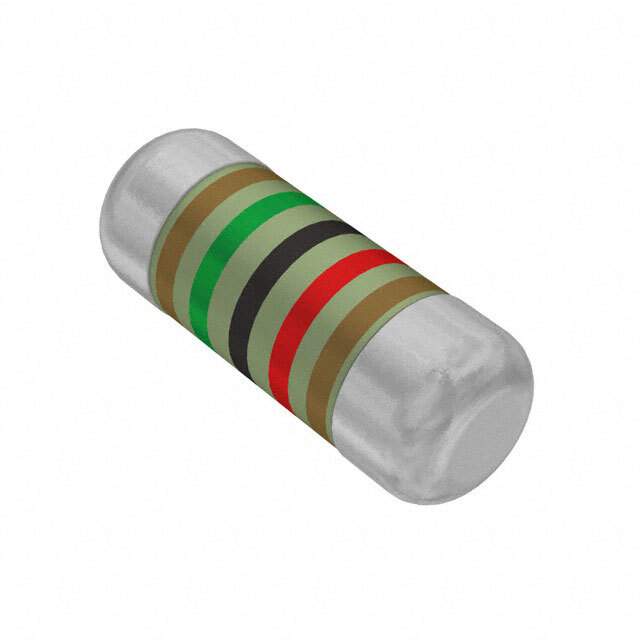

SMM02070C1502FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C1502FBP00

Part No SMM02070C1502FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 15K OHM 1% 1W MELF  /  15 kOhms ±1% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02070C1502FBP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series SMM0207
Package Tape & Reel
Resistance 15 kOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0207
Supplier Device Package MELF
Ratings AEC-Q200
Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names 749-1142-1,749-1142-2,SMM02070C1502FBP00-ND,749-1142-6
Standard Package 1,500
Win Source Part Number 1028576-SMM02070C1502FBP00
Ultra Librarian 3D Model Ultra Librarian SMM02070C1502FBP00 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components SMM02070C1502FBP00, from the SMM0207 series, is a chip resistor with a surface-mount package of MELF, 0207.

  • Resistance: 15 kOhms
  • Tolerance: ±1%
  • Power: 1W
  • Temperature Coefficient: ±50ppm/°C
  • Dimension: 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
  • Features: Anti-sulfur, automotive AEC-Q200, and pulse-withstanding
  • Packaging: Tape and reel
  • Standard Package: 1,500
  • ECCN: EAR99
  • HTSUS: 8533.21.0040
