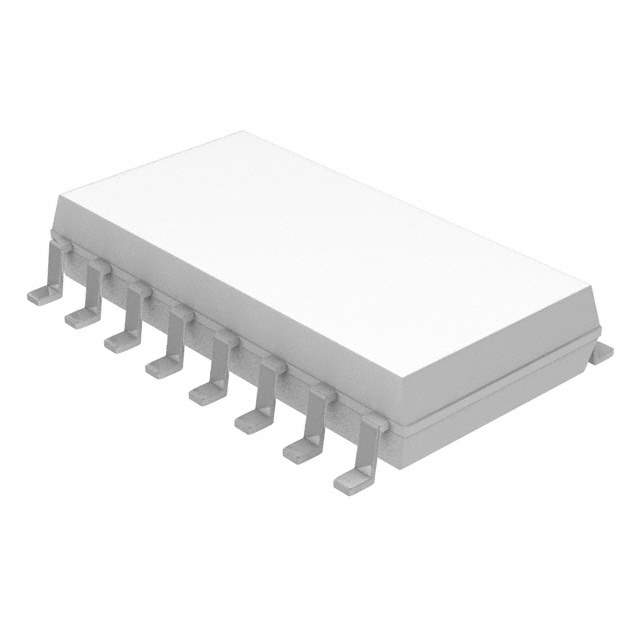

The SOMC160110K0FEA is a thick film, surface mount resistor network manufactured by Vishay. This resistor network is designed for precision applications where multiple matched resistors are required in a single compact package. It offers excellent stability and tolerance, making it suitable for use in various electronic circuits.

Applications

• Voltage dividers
• Current sensing
• Feedback circuits
• Instrumentation amplifiers
• Precision control circuits

Features

• Surface mount package
• Thick film technology
• Multiple resistors in a single package
• High precision and stability
• Low temperature coefficient
• Excellent TCR tracking

Benefits

• Saves board space compared to using discrete resistors.
• Improves circuit performance due to matched resistor characteristics.
• Simplifies assembly process.
• Enhances reliability with robust construction.
• Reduces component count.

Additional Details

The SOMC160110K0FEA has a resistance value of 10 kΩ with a tolerance of ±1%. The power rating is 0.1 W per resistor. It is available in a small outline molded case (SOMC) package. Key specifications include a temperature coefficient of resistance (TCR) of ±100 ppm/°C and a working voltage of 50V. This resistor network is designed for demanding applications requiring high accuracy and long-term stability. Using this network enables a denser and more reliable circuit design when compared to discrete components, particularly in precision analog circuits.
