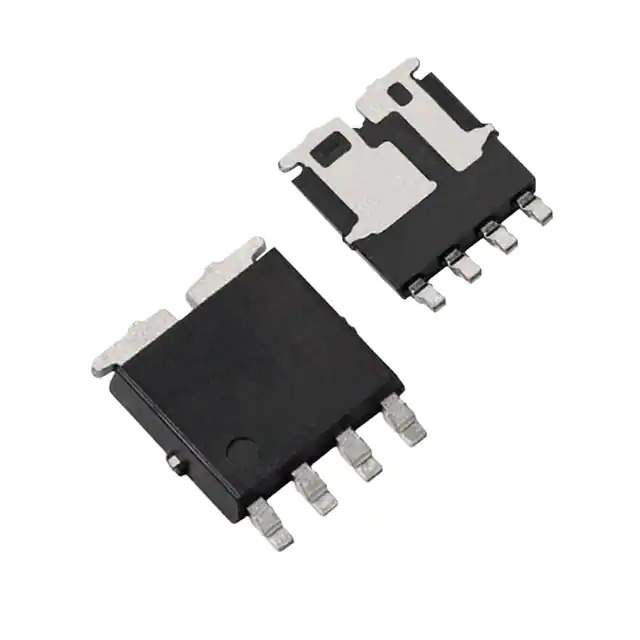

SQJ264EP-T1_GE3 Real Image
Same model may have multiple batches, images only for reference.

SQJ264EP-T1_GE3

Part No SQJ264EP-T1_GE3
Manufacturer Vishay
Catalog FETs - Arrays
Description AUTOMOTIVE DUAL N-CHANNEL 60 V (
Datasheet
SQJ264EP-T1_GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Vishay
Series Automotive, AEC-Q101, TrenchFET®
Package Tape & Reel
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual) Asymmetrical
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 20A (Tc), 54A (Tc)
Rds On (Max) @ Id, Vgs 20mOhm @ 6A, 10V, 8.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 16nC @ 10V, 32nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 1000pF @ 25V, 2100pF @ 25V
Power - Max 27W (Tc), 48W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case PowerPAK® SO-8 Dual
Supplier Device Package PowerPAK® SO-8 Dual Asymmetric
Base Product Number SQJ264
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 964130-SQJ264EP-T1_GE3
Ultra Librarian 3D Model Ultra Librarian SQJ264EP-T1_GE3 CAD Model

Description

The SQJ264EP-T1_GE3 is an automotive MOSFET array from Vishay.

  • Series: TrenchFET™
  • Mounting Type: Surface Mount
  • Configuration: Two N-Channel MOSFETs
  • Drain to Source Voltage (Vdss): 60V
  • Continuous Drain Current (Id) @ Tc: 20A
  • On-Resistance (Rds On): 20mOhm @ 6A, 10V
  • Product Status: Active
  • Power Dissipation (Max): 27W (Tc)
  • Package: PowerPAK® SO-8 Dual
  • Gate Charge (Qg) @ 10V: 16nC
  • Suitable for: Automotive and industrial applications
