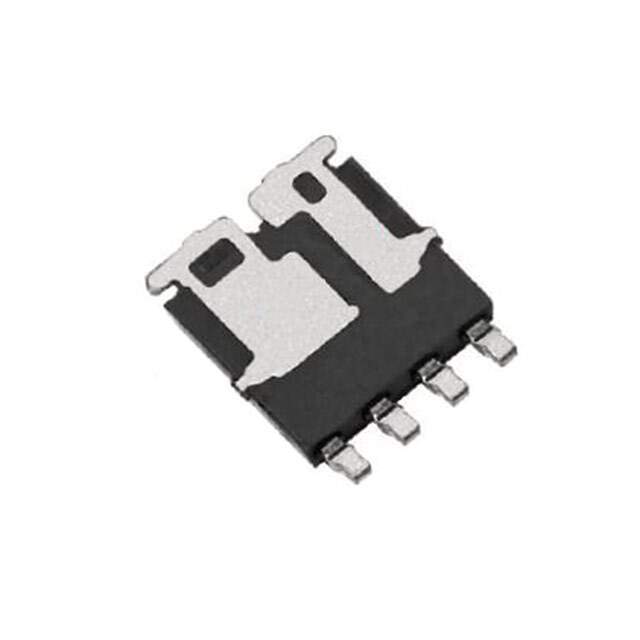

This discrete semiconductor product is a MOSFET array from Vishay Siliconix. It is part of the Automotive, AEC-Q101, TrenchFET series and has a PowerPAK® SO-8 Dual package.

• FET Type: 2 N-Channel (Dual) with a standard feature
• Drain to Source Voltage (Vdss): 100V
• Current - Continuous Drain (Id) @ 25°C: 34A (Tc)
• Rds On (Max) @ Id, Vgs: 40mOhm @ 6A, 10V, 19mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id: 2.5V @ 250µA
• Power - Max: 48W
• Gate Charge (Qg) (Max) @ Vgs: 30nC @ 10V, 15nC @ 10V
• Input Capacitance (Ciss) (Max) @ Vds: 1390pF @ 25V, 650pF @ 25V
• Temperature Range: -55°C ~ 175°C (TJ)
