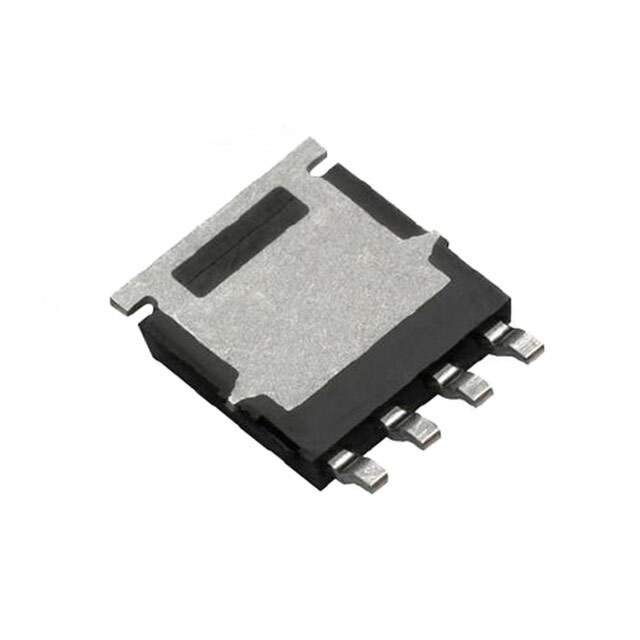

SQJA76EP-T1_GE3 Real Image
Same model may have multiple batches, images only for reference.

SQJA76EP-T1_GE3

Part No SQJA76EP-T1_GE3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
SQJA76EP-T1_GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Vishay Siliconix
Series Automotive, AEC-Q101, TrenchFET®
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 2.4mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 100 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 5250 pF @ 25 V
Power Dissipation (Max) 68W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PowerPAK® SO-8
Package / Case PowerPAK® SO-8
Base Product Number SQJA76
Other Names SQJA76EP-T1_GE3TR,SQJA76EP-T1_GE3DKR,SQJA76EP-T1_GE3CT
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1277840-SQJA76EP-T1_GE3
Ultra Librarian 3D Model Ultra Librarian SQJA76EP-T1_GE3 CAD Model

Description

The SQJA76EP-T1_GE3 is an N-channel MOSFET transistor from the TrenchFET series by Vishay Siliconix.

  • Drain to Source Voltage: 40V
  • Continuous Drain Current: 75A (Tc)
  • Maximum On-Resistance @ Drain Current, Gate-Source Voltage: 2.4mOhm @ 10A, 10V
  • Gate-Source Threshold Voltage @ Drain Current: 3.5V @ 250μA
  • Power Dissipation: 68W (Tc)
  • Mounting Technology: SMD (SMT)
  • Package/Case: PowerPAK® SO-8
  • Temperature Range: -55°C to 175°C (TJ)
  • ECCN: EAR99
