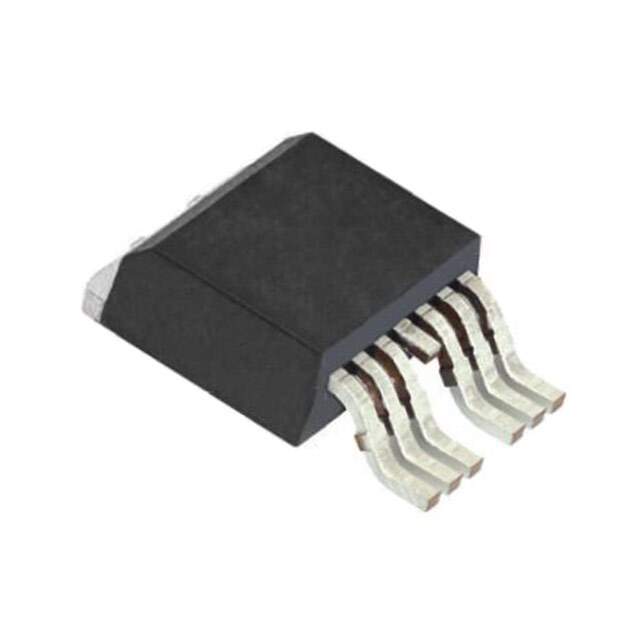

Same model may have multiple batches, images only for reference.

SQM200N04-1M8_GE3

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SQM200N04-1M8_GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Datasheet	SQM200N04-1M8_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	200A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.8mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	310 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	17350 pF @ 25 V
Power Dissipation (Max)	375W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	TO-263-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
Base Product Number	SQM200
Standard Package	800
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1277934-SQM200N04-1M8_GE3
Ultra Librarian 3D Model	Ultra Librarian SQM200N04-1M8_GE3 CAD Model

Alternative Products

Description

The Vishay Siliconix SQM200N04-1M8_GE3 is an N-channel MOSFET transistor with a drain to source voltage (Vdss) of 40V and a continuous drain current (Id) of 200A @ 25°C.

Rds On (Max) @ Id, Vgs: 1.8mOhm @ 30A, 10V
Vgs(th) (Max) @ Id: 3.5V @ 250µA
Power Dissipation: 375W (Tc)
Package/Case: TO-263-7, D²Pak (6 Leads + Tab)
Supplier Device Package: TO-263-7
Gate Charge (Qg) (Max) @ Vgs: 310 nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 17350 pF @ 25V
Operating Temperature Range: -55°C to 175°C (TJ)
