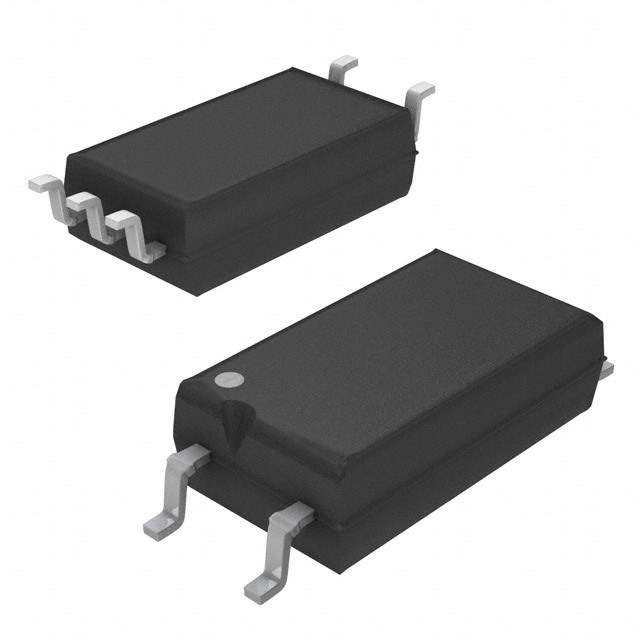

TCLT1106 Real Image
Same model may have multiple batches, images only for reference.

TCLT1106

Part No TCLT1106
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SOP
Datasheet
TCLT1106 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 100% @ 5mA
Maximum DC Current Transfer Ratio 300% @ 5mA
Switching Turn-On and Turn-Off Time 6μs, 5μs
Rise and Fall Time 3μs, 4.7μs
Input Type DC
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SOP, 5 Pin
Win Source Part Number 1106387-TCLT1106
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TCLT1106 CAD Model

Description

The Vishay 1106387-TCLT1106 is an electronic component that is used in various applications.

  • Manufacturer: Vishay
  • Win Source Part Number: 1106387-TCLT1106
  • Category: Isolators
  • Status: Active
  • Popularity: Medium
  • Mounting: SMD
  • Forward Voltage: See Datasheet
  • Input Type: See Datasheet
  • Number of Channels: See Datasheet
  • Isolation Voltage: See Datasheet
  • Temperature Range: See Datasheet
  • Case/Package: See Datasheet
