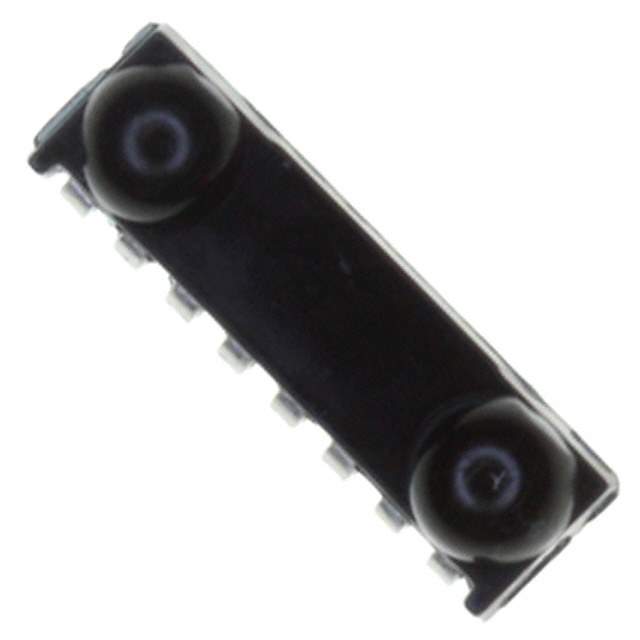

TFDU6300-TR3 Real Image
Same model may have multiple batches, images only for reference.

TFDU6300-TR3

Part No TFDU6300-TR3
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description TXRX IRDA 4MBIT 2.5MM SIDE 8-SMD
Datasheet
TFDU6300-TR3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Data Rate 4Mbs (FIR)
Supply Voltage 2.4 V to 3.6 V
Idle Current, Typ @ 25°C 1.8 mA
Link Range, Low Power 70cm
Orientation Side View
Temperature Range - Operating -25°C to 85°C
Size 8.5mm x 3.1mm x 2.5mm
Standards IrPHY 1.4
Win Source Part Number 142058-TFDU6300-TR3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TFDU6300-TR3 CAD Model

Description

The Vishay 142058-TFDU6300-TR3 is an obsolete (EOL) side view sensor/transducer that operates in a temperature range of -25°C to 85°C.

  • Data Rate: 4Mbs (FIR)
  • Link Range: 70cm in low power
  • Packaging: reel-TR
  • Popularity: medium
  • Supply and demand status: limited
