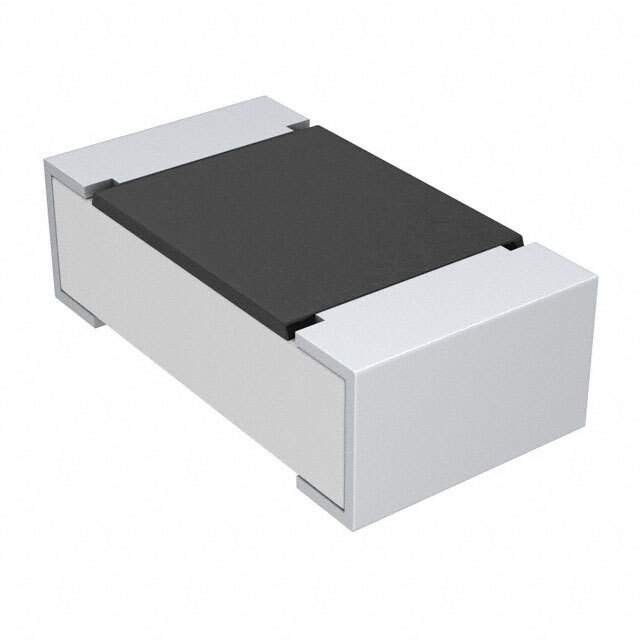

The TFPT0603L2200FV is a thin film Pt-RTD (Platinum Resistance Temperature Detector) from Vishay. This precision temperature sensor is designed for surface mounting and offers high accuracy and stability over a wide temperature range. Its small 0603 case size makes it suitable for applications where space is limited.

Applications:

• Temperature Compensation: Used in electronic circuits to compensate for temperature-induced variations in component performance.
• Industrial Process Control: Employed in temperature monitoring and control systems in industrial settings.
• Medical Equipment: Integrated into medical devices for precise temperature measurement and regulation.
• HVAC Systems: Used in heating, ventilation, and air conditioning systems for accurate temperature sensing.
• Automotive Applications: Used in automotive electronics for engine temperature monitoring and control.

Features:

• Thin Film Technology: Provides high stability and accuracy.
• Pt-RTD Sensor: Offers a linear and predictable temperature response.
• Small 0603 Case Size: Enables integration into compact electronic devices.
• Surface Mount Device (SMD): Facilitates automated assembly and reduces manufacturing costs.
• Wide Temperature Range: Operates reliably over a wide temperature range, typically -50°C to +150°C.
• High Accuracy: Provides precise temperature measurements with minimal error.

Benefits:

• Accurate Temperature Measurement: Ensures precise and reliable temperature sensing.
• Stable Performance: Maintains consistent performance over time and temperature variations.
• Compact Design: Allows for integration into small electronic devices.
• Easy Assembly: Simplifies manufacturing processes with surface mount technology.
• Wide Operating Range: Suitable for a variety of applications with different temperature requirements.

Additional Details:

The TFPT0603L2200FV has a nominal resistance of 2200 ohms at 0°C. The temperature coefficient of resistance (TCR) is a key parameter, typically around 3850 ppm/K, which defines the change in resistance per degree Celsius. The sensor is compliant with RoHS standards, meaning it is free of hazardous substances. It is designed for reflow soldering processes and is available in tape and reel packaging for automated assembly. It exhibits excellent long-term stability. Typical applications involve using the RTD within a bridge circuit or current source configuration to measure the voltage or current change with temperature, allowing precise monitoring and control.
