Same model may have multiple batches, images only for reference.

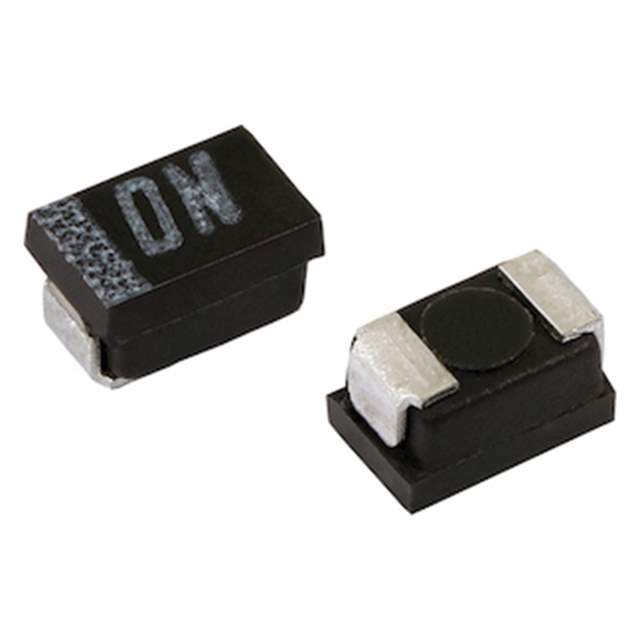

TMCP1A685MTRF Real Image
Same model may have multiple batches, images only for reference.

TMCP1A685MTRF

Part No TMCP1A685MTRF
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 6.8UF 20% 10V 0805  /  6.8 µF Molded Tantalum Capacitors 10 V 0805 (2012 Metric) 4Ohm @ 100kHz
Datasheet
TMCP1A685MTRF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TMCP
Package Tape & Reel
Capacitance 6.8 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Molded
ESR (Equivalent Series Resistance) 4Ohm @ 100kHz
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.047" (1.20mm)
Manufacturer Size Code P
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Names 718-2495-6,718-2495-1,718-2495-2
Standard Package 3,000
Win Source Part Number 964917-TMCP1A685MTRF
Ultra Librarian 3D Model Ultra Librarian TMCP1A685MTRF CAD Model

Description

The TMCP1A685MTRF is a molded tantalum capacitor that belongs to the Capacitors - Tantalum Capacitors category.

  • Series: TMCP
  • Capacitance: 6.8 µF
  • Tolerance: ±20%
  • Voltage Rated: 10V
  • ESR: 4Ohm @ 100kHz
  • Package/Case: 0805 (2012 Metric)
  • Manufacturer Size Code: P
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8532.21.0050
  • Manufacturer: Vishay Sprague
