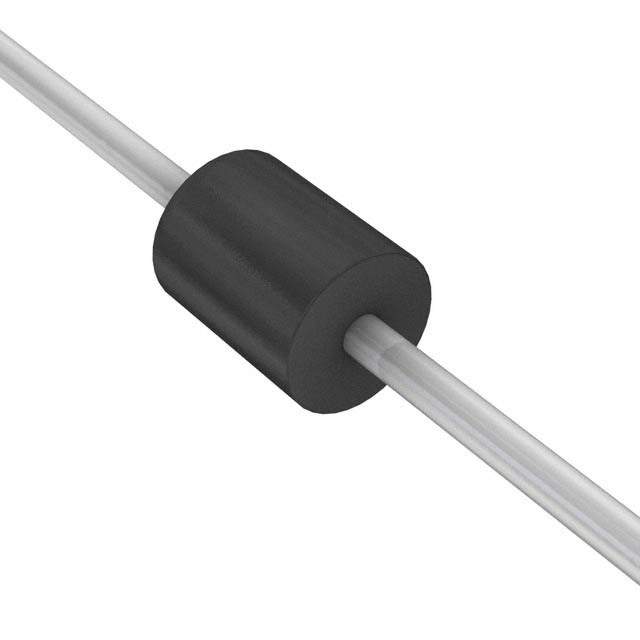

TMPG06-27A-E3/54 Real Image
Same model may have multiple batches, images only for reference.

TMPG06-27A-E3/54

Part No TMPG06-27A-E3/54
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 23.1VWM 37.5VC MPG06  /  37.5V Clamp 10.7A Ipp Tvs Diode Through Hole MPG06
Datasheet
TMPG06-27A-E3/54 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series PAR®
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 23.1V
Voltage - Breakdown (Min) 25.7V
Voltage - Clamping (Max) @ Ipp 37.5V
Current - Peak Pulse (10/1000µs) 10.7A
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 185°C (TJ)
Mounting Type Through Hole
Package / Case MPG06, Axial
Supplier Device Package MPG06
Base Product Number TMPG06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 5,500
Win Source Part Number 1100421-TMPG06-27A-E3/54
Ultra Librarian 3D Model Ultra Librarian TMPG06-27A-E3/54 CAD Model

Description

The TMPG06-27A-E3/54 is a Zener diode with a breakdown voltage of 25.7V and a reverse standoff voltage of 23.1V.

  • Power Peak Pulse: 400W
  • Current Peak Pulse: 10.7A
  • Voltage Clamping @ Ipp: 37.5V
  • Package: Axial MPG06
  • Series: PAR®
  • Packaging: Tape & reel
  • Standard Package: 5,500
  • Operating Temperature: -65°C to 185°C (TJ)
