Applications

• Precision instrumentation
• Medical equipment
• Test and measurement equipment
• Automotive electronics
• Industrial control systems

Features

• Small Size: 0805 package size, offering a balance between size and power handling.
• Thin Film Technology: Provides exceptional precision and stability.
• Tight Tolerance: Offers a tight resistance tolerance for accurate circuit performance.
• Low Temperature Coefficient of Resistance (TCR): Minimizes resistance changes over temperature.
• High Stability: Excellent long-term stability and resistance to environmental factors.
• AEC-Q200 Qualified: Suitable for automotive applications.
• Lead-Free: RoHS compliant, meeting environmental regulations.

Benefits

• High Accuracy: Ensures precise circuit performance in critical applications.
• Stable Performance: Maintains resistance value over a wide range of operating conditions.
• Minimized Temperature Effects: Reduces resistance drift due to temperature variations.
• Long-Term Reliability: Provides consistent performance over an extended lifespan.
• Automotive Grade: Suitable for demanding automotive environments.
• Environmentally Friendly: Complies with RoHS standards.

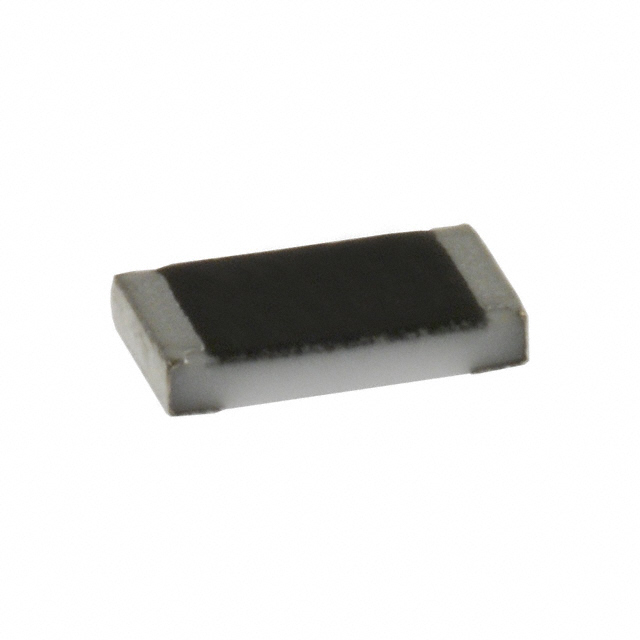

The TNPW08052400BEEA resistor is a surface-mount device (SMD) with a resistance value of 240 Ω (240 ohms). The '0805' indicates its physical dimensions, which are 0.08 inch by 0.05 inch. The thin film technology employed in its construction enables extremely precise resistance values and excellent stability over time and temperature. The low TCR minimizes resistance variations due to temperature changes, ensuring consistent circuit performance across a wide operating temperature range.

This precision resistor is typically used in circuits where accurate resistance is critical, such as in analog signal processing, sensor interfaces, and voltage references. Its AEC-Q200 qualification makes it suitable for automotive applications, where components must withstand harsh environmental conditions and meet stringent reliability requirements. The resistor's lead-free construction aligns with RoHS regulations, making it an environmentally sound choice for modern electronic designs. Its high precision, stability, and reliability make it an ideal choice for demanding applications requiring accurate and consistent performance.
