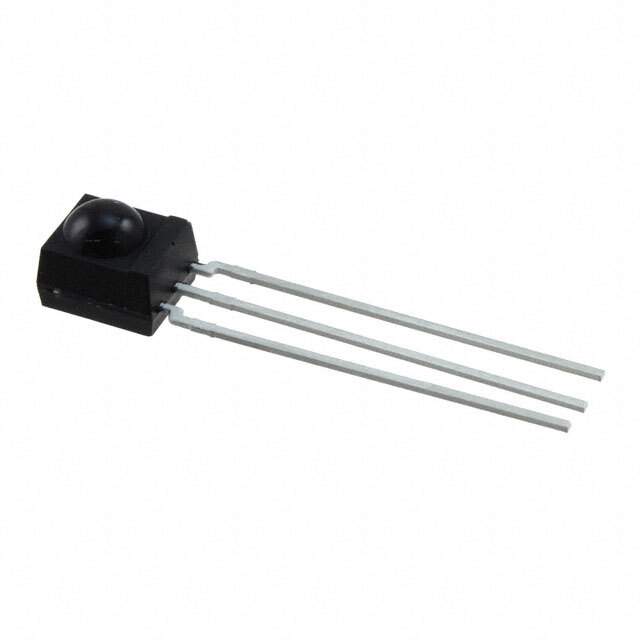

TSOP2256 Real Image
Same model may have multiple batches, images only for reference.

TSOP2256

Part No TSOP2256
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description SENSOR REMOTE REC 56.0KHZ 45M / Remote Receiver Sensor 56.0kHz 45m Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay Semiconductor Opto Division
Package Tube
Sensing Distance 45m
B.P.F. Center Frequency 56.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 700 µA
Orientation Side View
Mounting Type Through Hole
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSOP2256
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Standard Package 2,160
Win Source Part Number 988298-TSOP2256
Ultra Librarian 3D Model Ultra Librarian TSOP2256 CAD Model

Description

The Vishay TSOP2256 is an optical sensor that is designed to detect remote signals.

  • Manufacturer: Vishay
  • Sensing Distance: Up to 45m
  • B.P.F. Center Frequency: 56.0kHz
  • Current Supply: 700 µA
  • Voltage Supply: 2.5 V to 5.5 V
  • Mounting Type: Through-hole
  • Temperature Range: -25°C to 85°C (TA)
