Same model may have multiple batches, images only for reference.

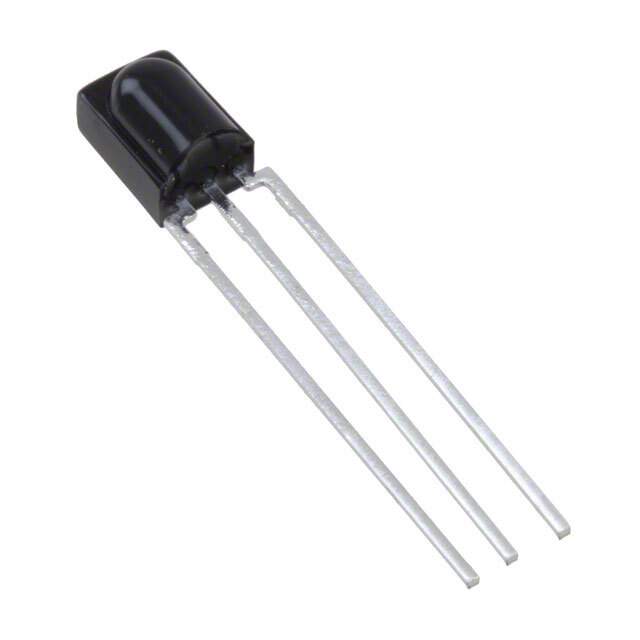

TSOP38436 Real Image
Same model may have multiple batches, images only for reference.

TSOP38436

Part No TSOP38436
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description PH.MODULE 36KHZ S.VIEW
Datasheet
TSOP38436 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Bulk
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 450μA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 213559-TSOP38436
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSOP38436 CAD Model

Description

The Vishay TSOP38436 sensor is a through-hole mounted product with a sensing distance of 45m and a carrier frequency of 36.0kHz.

  • Common Usage: commonly used in sensors and transducers
  • Operating Temperature Range: -25°C to 85°C
  • Supply Voltage: 2.5V to 5.5V
  • Operating Supply Current: 450μA
  • Manufacturer: Vishay
  • Popularity: medium
  • Supply and Demand Status: balance
