Same model may have multiple batches, images only for reference.

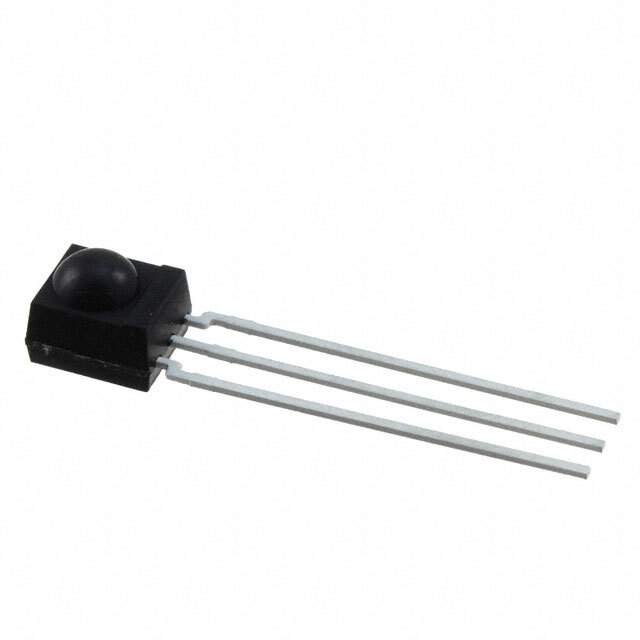

TSOP4836 Real Image
Same model may have multiple batches, images only for reference.

TSOP4836

Part No TSOP4836
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description PH.MODULE 36KHZ S.VIEW
Datasheet
TSOP4836 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Bulk
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 0.7mA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 057166-TSOP4836
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSOP4836 CAD Model

Description

Vishay presents the TSOP4836 sensor with the Win Source Part Number 057166-TSOP4836.

  • Category: sensors and transducers
  • Applications: use in various electronic applications
  • Sensing Distance: 45m
  • Operating Temperature Range: -25°C to 85°C
  • Supply Voltage: 2.5V to 5.5V
  • Operating Supply Current: 0.7mA
  • Reliability: reliable choice for electronic applications
