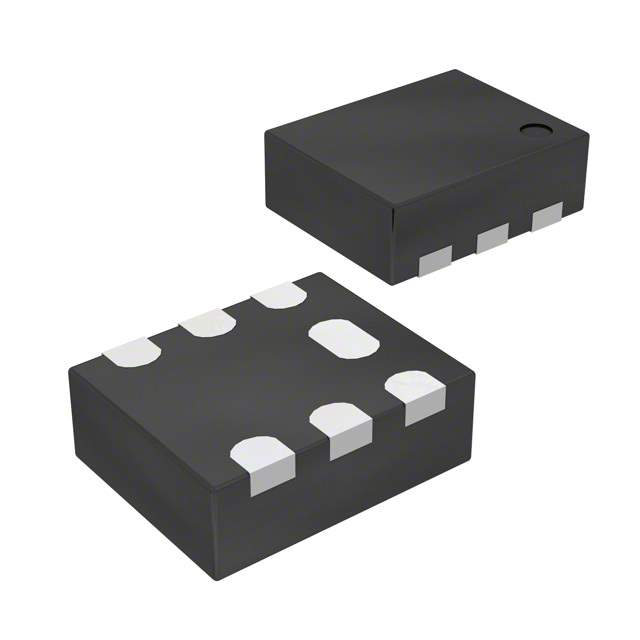

VBUS052CD-FAH-GS08 Real Image
Same model may have multiple batches, images only for reference.

VBUS052CD-FAH-GS08

Part No VBUS052CD-FAH-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 5VC LLP1713-7L
Datasheet
VBUS052CD-FAH-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 42 Weeks
Features 5V Clamp 3.5A (8/20µs) Ipp Tvs Diode Surface Mount LLP1713-7L
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 6-UDFN Exposed Pad
Case / Package LLP1713-7L
Family Name VBUS052
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number VBUS052CD-FAH-GS08GICT, VBUS052CD-FAH-GS08-ND, VBUS052CD-FAH-GS08GIDKR, VBUS052CD-FAH-GS08GITR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902498-VBUS052CD-FAH-GS08
Ultra Librarian 3D Model Ultra Librarian VBUS052CD-FAH-GS08 CAD Model

Description

The VBUS052CD-FAH-GS08 is a 5V clamp 3.5A (8/20µs) Ipp Tvs Diode manufactured by Vishay.

  • Voltage: 5V clamp
  • Current: 3.5A (8/20µs) Ipp
  • Type: Tvs Diode
  • Mounting: Surface-mount device (SMD)
  • Package: LLP1713-7L
  • Series: VBUS052 series
  • Supply and Demand: In balance
  • Packaging: Reel
  • Quantity per Package: 3000 components
  • REACH: Unaffected
  • HTSUS code: 8541.10.0080
