Same model may have multiple batches, images only for reference.

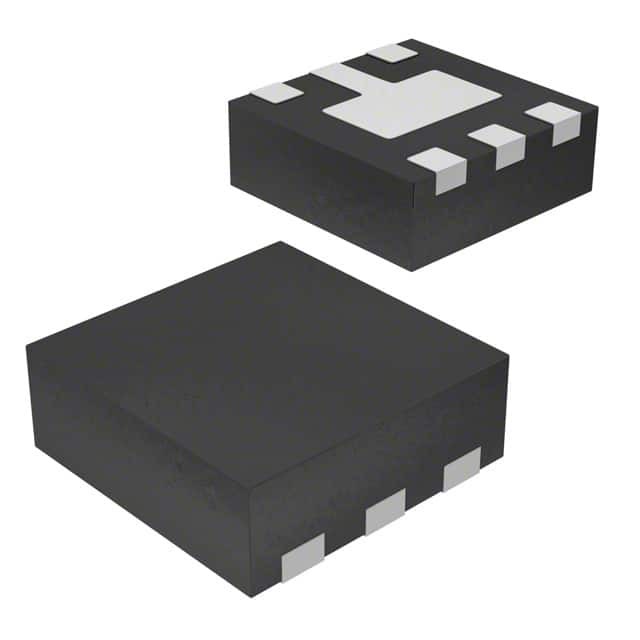

VBUS54CV-HSF-G4-08
Same model may have multiple batches, images only for reference.

VBUS54CV-HSF-G4-08

Part No VBUS54CV-HSF-G4-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 22VC LLP75-6L
Datasheet
VBUS54CV-HSF-G4-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 41 Weeks
Features 22V Clamp 11A (8/20µs) Ipp Tvs Diode Surface Mount LLP75-6L
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 6-UFDFN Exposed Pad
Case / Package LLP75-6L
Family Name VBUS54
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number VBUS54CV-HSF-G4-08DKR, VBUS54CV-HSF-G4-08TR, VBUS54CV-HSF-G4-08CT, VBUS54CVHSFG408
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902499-VBUS54CV-HSF-G4-08
Ultra Librarian 3D Model Ultra Librarian VBUS54CV-HSF-G4-08 CAD Model

Description

The Vishay electronic component is a VBUS54CV-HSF-G4-08 part that belongs to the Circuit Protection category.

  • Market Popularity: High popularity
  • Supply and Demand: Balanced supply and demand status
  • Quantity per Package: 3000
  • Estimated Production Lead Time: 41 weeks
  • REACH: Unaffected
  • ECCN: EAR99
