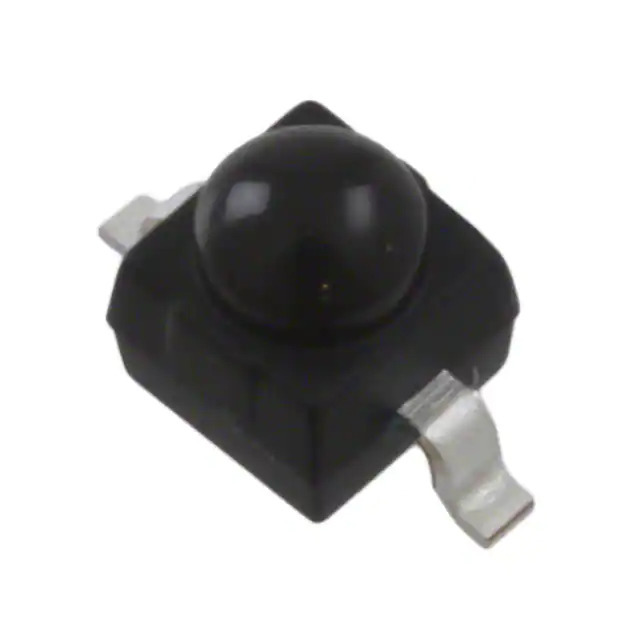

VEMD2023X01 Vishay
Same model may have multiple batches, images only for reference.

VEMD2023X01

Part No VEMD2023X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 430 TO 1100 NM / Photodiode 940nm 100ns 70° 2-SMD
Datasheet
VEMD2023X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Wavelength 940nm
Color - Enhanced -
Spectral Range 750nm ~ 1050nm
Diode Type PIN
Responsivity @ nm -
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Dark (Typ) 1nA
Active Area 0.23mm²
Viewing Angle 70°
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 2-SMD
Base Product Number VEMD2023
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1355609-VEMD2023X01
Ultra Librarian 3D Model Ultra Librarian VEMD2023X01 CAD Model

Description

The VEMD2023X01 is an optical sensor photodiode from Vishay Semiconductor Opto Division.

  • Mounting Type: Surface Mount
  • Package / Case: 2-SMD
  • Voltage - DC Reverse (Vr) (Max): 60V
  • Operating Temperature: -40°C ~ 100°C
  • Diode Type: PIN
  • Viewing Angle: 70°
  • Response Time: 100ns
  • Wavelength: 940nm
  • Spectral Range: 750nm ~ 1050nm
  • Active Area: 0.23mm²
