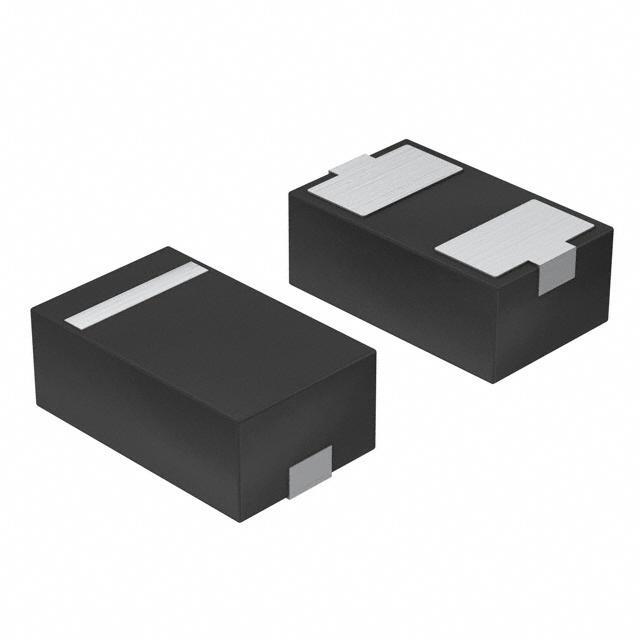

VESD05A1B-HD1-GS08

Name: VESD05A1B-HD1-GS08
Brand: Vishay
SKU: 397842
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VESD05A1B-HD1-GS08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	ESD Suppressor Diode TVS Uni-Dir 5V 2-Pin LLP T/R / TVS DIODE 5VWM 11VC LLP10062L
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	6V
Max Clamping Voltage	11V
Peak Pulse Current(Ippm)	3A (8/20μs)
Power Dissipation - Pd	33W
Applications	General Purpose
Capacitance @ Frequency	19pF @ 1MHz
Temperature Range - Operating	-40°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	LLP1006-2L
Win Source Part Number	036254-VESD05A1B-HD1-GS08
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	VESD05A1B-HD1
Introduction Date	November 12, 2007
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian VESD05A1B-HD1-GS08 CAD Model

Alternative Products

Description

The Vishay VESD05A1B-HD1-GS08 is a high popularity electronic component that is balanced in terms of supply and demand.

Manufacturer: Vishay
Type: Zener
Mounting: SMD (SMT)
Capacitance: 19pF @ 1MHz
Case/Package: LLP1006-2L
STAND-OFF voltage (Vwm): 5V (Max)
Minimum Breakdown Voltage: 6V
Max Clamping Voltage: 11V
Peak Pulse Current (Ippm): 3A (8/20μs)
Power Dissipation - Pd: 33W
Introduction Date: November 12, 2007
Estimated EOL Date: 2025
Compliance: Halogen Free
