Same model may have multiple batches, images only for reference.

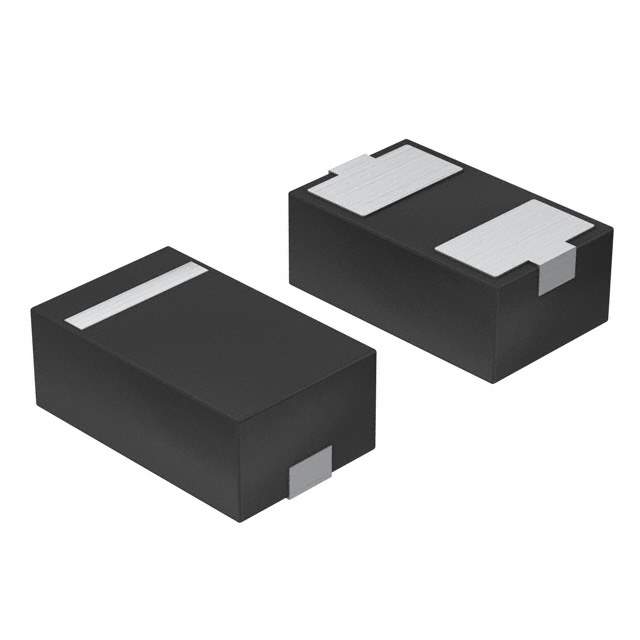

VESD12A1A-HD1-GS08 Real Image
Same model may have multiple batches, images only for reference.

VESD12A1A-HD1-GS08

Part No VESD12A1A-HD1-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 12VWM 24VC 2LLP
Datasheet
VESD12A1A-HD1-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V (Max)
Minimum Breakdown Voltage 13.5V
Max Clamping Voltage 24V
Peak Pulse Current(Ippm) 8A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Capacitance @ Frequency 54pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP1006-2L
Win Source Part Number 1117005-VESD12A1A-HD1-GS08
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VESD12A1A-HD1-GS08 CAD Model

Description

The Vishay VESD12A1A-HD1-GS08 is a unidirectional zener diode with a maximum stand-off voltage of 12V and a minimum breakdown voltage of 13.5V.

  • Manufacturer: Vishay
  • Mounting Type: Surface Mount
  • Package Size: LLP1006-2L
  • Peak Pulse Current: 8A (8/20μs)
  • Power Dissipation: 200W
  • Applications: power supplies, surge protection, and transient voltage suppression
