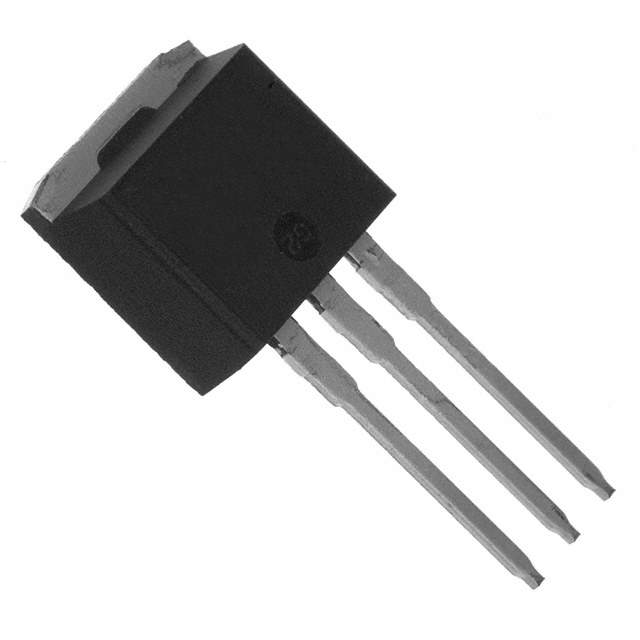

The VI20M120C is a Schottky Barrier Rectifier from Vishay, designed for high-frequency switching power supplies and other applications requiring efficient rectification and low forward voltage drop. This dual rectifier configuration in a single package offers a compact and cost-effective solution for various power management applications.

Applications:

• High-Frequency Switching Power Supplies: Efficient rectification in secondary-side circuits.
• DC-DC Converters: Used in various DC-DC topologies, such as buck, boost, and flyback converters.
• Freewheeling Diodes: Protects inductive loads from voltage spikes during switching.
• Polarity Protection: Prevents damage from reverse polarity connections.
• LED Lighting: Rectification in LED driver circuits.

Features:

• Low Forward Voltage Drop (VF): Minimizes conduction losses, improving overall efficiency.
• High Surge Current Capability: Provides robust performance under transient conditions.
• Fast Switching Speed: Reduces switching losses, enabling high-frequency operation.
• Dual Common Cathode Configuration: Simplifies circuit design and reduces component count.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits:

• Enhanced Efficiency: Low forward voltage drop and fast switching contribute to higher efficiency in power conversion circuits.
• Reduced Heat Dissipation: Lower power losses result in less heat generation, simplifying thermal management.
• Compact Design: Dual rectifier in a single package saves board space.
• Improved System Reliability: Robust design and high surge current capability enhance system reliability.
• Cost-Effective Solution: Provides a high-performance rectification solution at a competitive price.

Additional Details:

The VI20M120C is available in a TO-220AB package. Key specifications include a maximum repetitive peak reverse voltage (VRRM) of 120V and an average forward current (IF(AV)) of 20A (10A per diode). The forward voltage (VF) is typically 0.85V at 10A. The operating temperature range is typically from -65°C to +150°C. This device is designed for through-hole mounting on a PCB. It is essential to adhere to the manufacturer's specifications regarding maximum current, voltage, and operating temperature to ensure reliable and safe operation. The device conforms to industry standards for electrical safety and performance.
