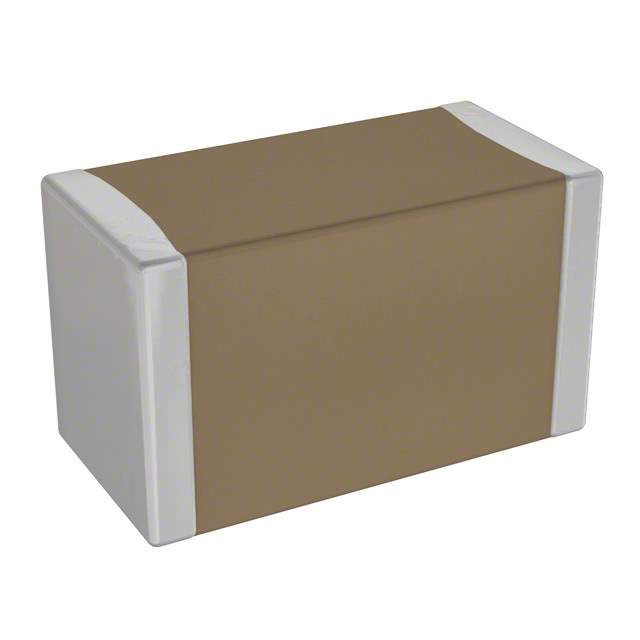

The VJ0603A8R2BXACW1BC is a surface-mount multilayer ceramic capacitor (MLCC) manufactured by Vishay. MLCCs are widely used in electronic circuits for various purposes, including decoupling, bypassing, filtering, and energy storage. This particular capacitor is part of Vishay's VJ series, known for their reliability and performance.

Applications

• Decoupling: Used to decouple power supply lines in digital circuits, reducing noise and voltage fluctuations.
• Bypassing: Employed to bypass high-frequency signals to ground, preventing interference.
• Filtering: Integrated into filters to block or pass specific frequency components.
• Timing Circuits: Used in timing circuits and oscillators to control timing intervals.
• Energy Storage: Utilized for energy storage in low-power applications.

Features

• Capacitance: 8.2 pF (picofarads).
• Voltage Rating: Typically 50V, but can vary based on specific series.
• Case Size: 0603 (0.06 inch x 0.03 inch).
• Temperature Coefficient: X8R (stable over a wide temperature range, -55°C to +150°C).
• Termination: Standard Nickel Barrier with Tin Plating.

Benefits

• High Reliability: Ensures stable performance over a long lifespan.
• Small Size: Enables compact circuit designs and high component density.
• Stable Capacitance: Maintains capacitance value over temperature and voltage variations.
• Low ESR (Equivalent Series Resistance): Minimizes power losses and improves circuit efficiency.
• RoHS Compliant: Meets environmental standards and regulations.

Additional Details

The "VJ" series indicates that this is a standard MLCC suitable for general-purpose applications. The 0603 case size is a common footprint for surface mount components. The X8R temperature coefficient indicates that the capacitance will remain relatively stable over a temperature range from -55°C to +150°C, with a maximum capacitance change of ±15%. The nickel barrier termination provides excellent solderability and resistance to leaching. The capacitor is typically used in high-frequency circuits due to its low ESR and ESL (Equivalent Series Inductance).

When using this capacitor, it's important to consider the operating voltage, temperature, and frequency to ensure reliable performance. Proper soldering techniques are also essential to prevent damage to the component. It is also recommended to consult the datasheet for the VJ series on Vishay's website for detailed specifications and application guidelines.
