Same model may have multiple batches, images only for reference.

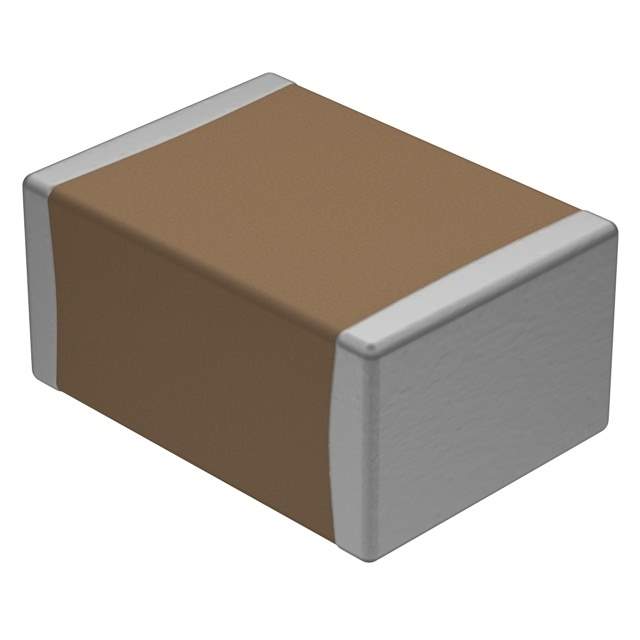

VJ1812Y472KXEAT5Z Real Image
Same model may have multiple batches, images only for reference.

VJ1812Y472KXEAT5Z

Part No VJ1812Y472KXEAT5Z
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 4700PF 500V X7R 1812 / 4700 pF ±10% 500V Ceramic Capacitor X7R 1812 (4532 Metric)
Datasheet
VJ1812Y472KXEAT5Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Vitramon
Series VJ HVArc Guard™
Package Tape & Reel
Capacitance 4700 pF
Tolerance ±10%
Voltage - Rated 500V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1812 (4532 Metric)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Max) 0.086" (2.18mm)
Base Product Number VJ1812
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names 720-1008-6,720-1008-2,720-1008-1
Standard Package 1,000
Win Source Part Number 1009004-VJ1812Y472KXEAT5Z
Ultra Librarian 3D Model Ultra Librarian VJ1812Y472KXEAT5Z CAD Model

Description

The Vishay Vitramon VJ HVArc Guard™ VJ1812Y472KXEAT5Z electronic component is a ceramic capacitor with a capacitance of 4700 pF and a voltage rating of 500V.

  • Capacitance: 4700 pF
  • Voltage Rating: 500V
  • Temperature Coefficient: X7R
  • Tolerance: ±10%
  • Package: Tape and Reel
  • Operating Temperature Range: -55°C to 125°C
  • Win Source Part Number: 1009004-VJ1812Y472KXEAT5Z
