Same model may have multiple batches, images only for reference.

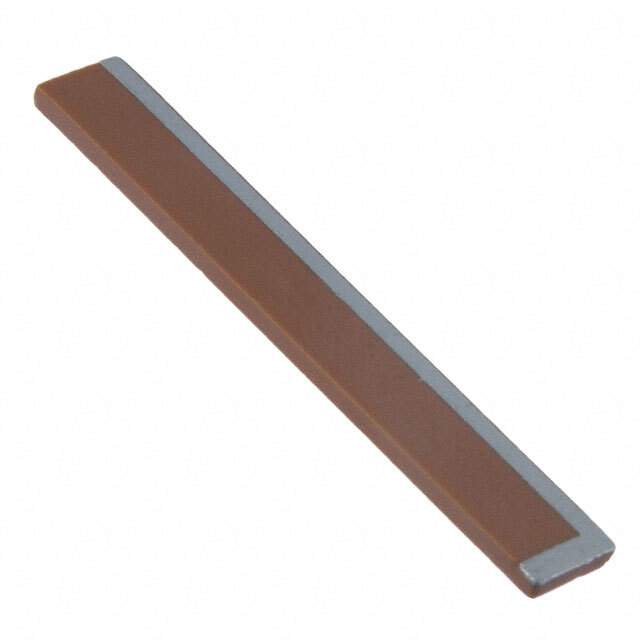

VJ3505M011SXMSRA0 Real Image
Same model may have multiple batches, images only for reference.

VJ3505M011SXMSRA0

Part No VJ3505M011SXMSRA0
Manufacturer Vishay
Catalog RF Antennas
Description RF ANT CHIP SOLDER SMD / Chip RF Antenna 470MHz ~ 860MHz -0.5dBi Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Vishay Vitramon
Package Tape & Reel
Product Status Obsolete
Frequency Group UHF (300MHz ~ 1GHz)
Frequency Range 470MHz ~ 860MHz
Antenna Type Chip
Number of Bands 1
Gain -0.5dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Other Names 720-1227-2,720-1227-1,720-1227-6
Standard Package 1,000
Win Source Part Number 1103906-VJ3505M011SXMSRA0
Ultra Librarian 3D Model Ultra Librarian VJ3505M011SXMSRA0 CAD Model

Description

The 1103906-VJ3505M011SXMSRA0 is a chip antenna designed for RF/IF and RFID applications.

  • Applications: RF/IF and RFID
  • Frequency Range: 470MHz to 860MHz
  • Frequency Group: UHF
  • Antenna Type: Chip
  • Band: Single
  • Gain: -0.5dBi
  • Termination: Solder
  • Package: Tape and Reel
  • Status: Obsolete
  • Alternative Parts: W3022, HLA.01, ANT-458-SP, A10137, W3544B, and W3000VJ3505M011SXMSRA0
