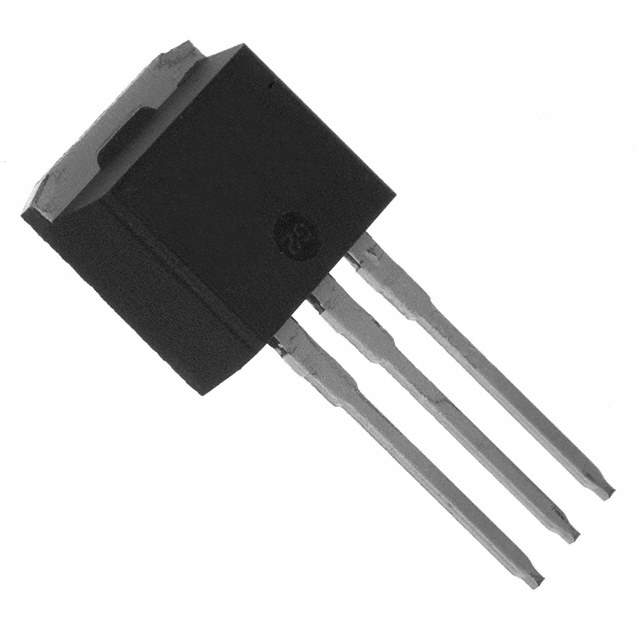

The VS-15ETH06-1PBF is a hyperfast rectifier diode manufactured by Vishay. This diode is designed for applications requiring fast switching speeds and high efficiency. The "PBF" suffix indicates that the component is lead-free and compliant with RoHS standards.

Applications

• Switch-Mode Power Supplies (SMPS)
• Power Factor Correction (PFC) circuits
• Uninterruptible Power Supplies (UPS)
• Freewheeling diodes in inverters
• High-frequency rectification
• Welding equipment
• Plasma cutting machines

Features

• Hyperfast recovery time: Offers extremely fast reverse recovery characteristics, minimizing switching losses.
• Low forward voltage drop: Reduces power dissipation and improves efficiency.
• High surge current capability: Withstands high surge currents without damage.
• High junction temperature: Operates reliably at high junction temperatures.
• Lead-free finish: Compliant with RoHS directives for environmental safety.
• Isolated package: Offers isolation between the terminals and the mounting surface.

Benefits

• Improved efficiency: Reduces power losses in high-frequency applications.
• Reduced EMI: Minimizes electromagnetic interference due to fast switching.
• High reliability: Provides stable and dependable performance.
• Enhanced thermal performance: Efficient heat dissipation improves overall system reliability.
• Compact design: Allows for smaller and more compact power supply designs.

Additional Details

The VS-15ETH06-1PBF features a voltage rating of 600V and a forward current of 15A. The hyperfast recovery time is crucial for minimizing switching losses in high-frequency applications, contributing to improved efficiency and reduced heat generation. The isolated package simplifies heat sinking and provides electrical isolation, enhancing safety. This diode is commonly used in power supplies and inverters where efficiency, speed, and reliability are critical. Designers should consult the Vishay datasheet for detailed specifications, including reverse recovery time, forward voltage drop at specific currents and temperatures, thermal resistance, and recommended mounting procedures to ensure optimal performance and reliability in their applications.
