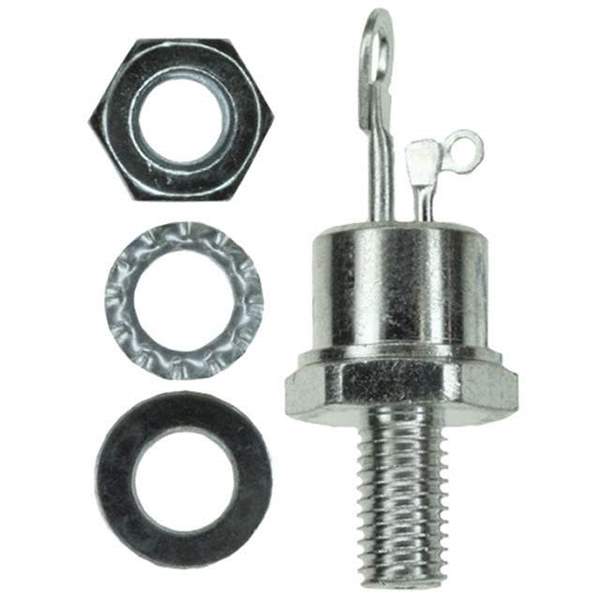

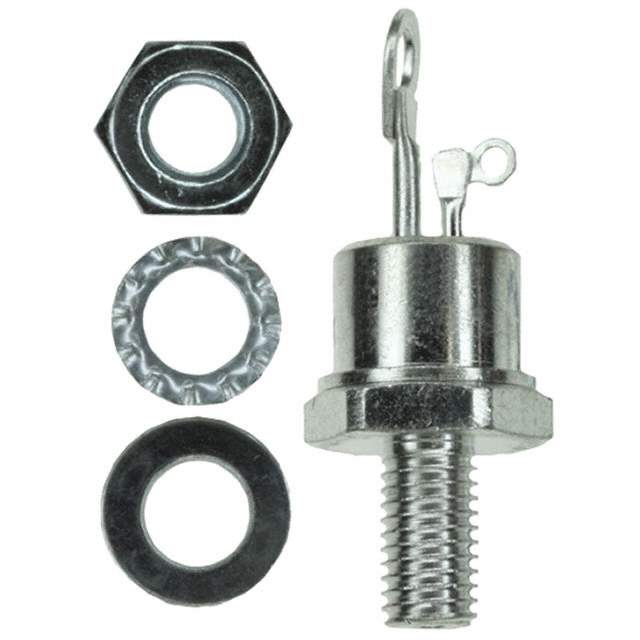

VS-22RIA80 Real Image
Same model may have multiple batches, images only for reference.

VS-22RIA80

Part No VS-22RIA80
Manufacturer Vishay
Catalog SCRs - Single
Description SCR MED POWER 800V 22A TO-48
Datasheet
VS-22RIA80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Voltage - On State (Vtm) (Maximum) 1.7V
Current - On State (It (AV)) (Maximum) 22A
Current - On State (It (RMS)) (Maximum) 35A
Current - Hold (Ih) (Maximum) 130mA
Current - Off State (Maximum) 10mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 400A, 420A
SCR Type Standard Recovery
Operating Temperature Range -65°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AA, TO-48-3, Stud
Manufacturer Package TO-208AA (TO-48)
Win Source Part Number 761857-VS-22RIA80
Popularity Medium
Supply and Demand Status Limited
Family Name 22RIA80
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-22RIA80 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-22RIA80 is a standard recovery SCR type from Vishay Semiconductor Diodes Division.

  • Maximum Voltage Off State: 800V
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2026
  • Packaging: Bulk
  • Current Rating: 35A
