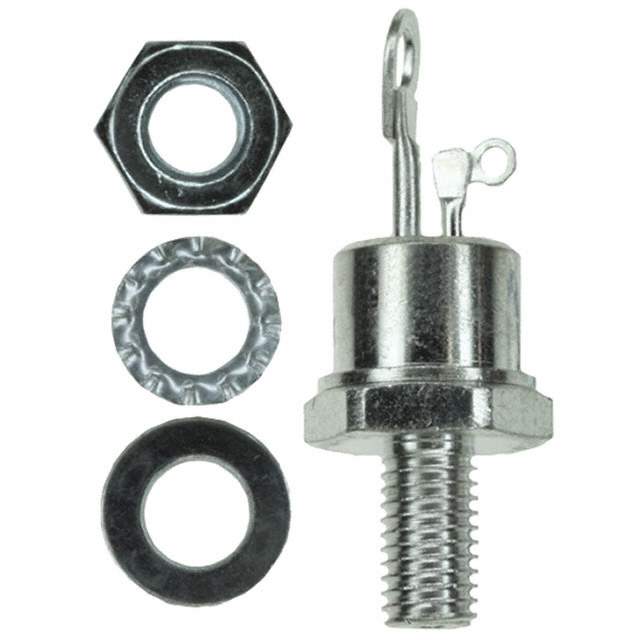

Same model may have multiple batches, images only for reference.

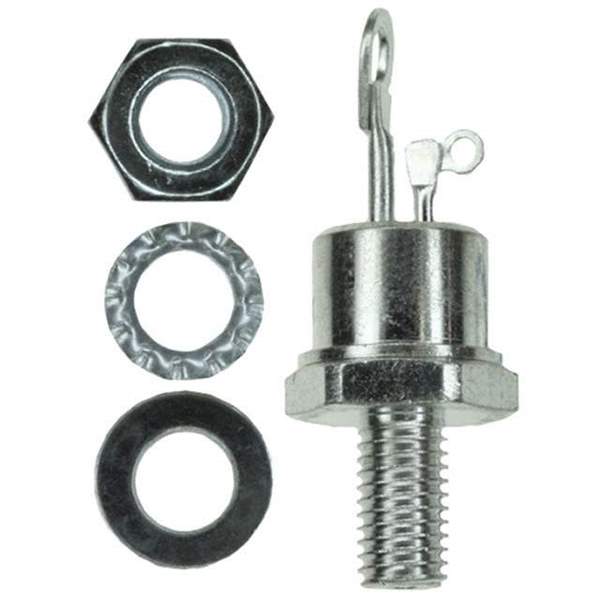

VS-25RIA40 Real Image
Same model may have multiple batches, images only for reference.

VS-25RIA40

Part No VS-25RIA40
Manufacturer Vishay
Catalog SCRs - Single
Description SCR MED POWER 400V 25A TO-48
Datasheet
VS-25RIA40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Voltage - On State (Vtm) (Maximum) 1.7V
Current - On State (It (AV)) (Maximum) 25A
Current - On State (It (RMS)) (Maximum) 40A
Current - Hold (Ih) (Maximum) 130mA
Current - Off State (Maximum) 10mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 420A, 440A
SCR Type Standard Recovery
Operating Temperature Range -65°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AA, TO-48-3, Stud
Manufacturer Package TO-208AA (TO-48)
Win Source Part Number 762012-VS-25RIA40
Popularity Medium
Supply and Demand Status Limited
Family Name VS-25RIA40
ECCN EAR99
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian VS-25RIA40 CAD Model

Description

The VS-25RIA40 is a standard recovery SCR (Silicon Controlled Rectifier) manufactured by Vishay Semiconductor Diodes Division.

  • Maximum On-State Current: 40A
  • Voltage Rating: 400V
  • Package: TO-208AA, TO-48-3, Stud
  • Mounting Type: Chassis Mount, Stud Mount
  • Maximum Voltage Gate Trigger: 2V
  • Maximum Gate Trigger Current: 60mA
  • Maximum Off-State Current: 10mA
  • Maximum Non-Repetitive Surge Current: 420A (50Hz), 440A (60Hz)
  • Operating Temperature Range: -65°C to 125°C
  • Supply and Demand Status: Limited
