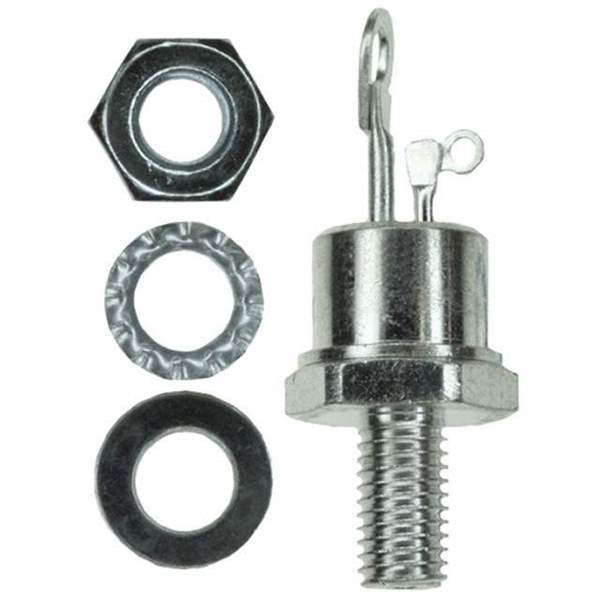

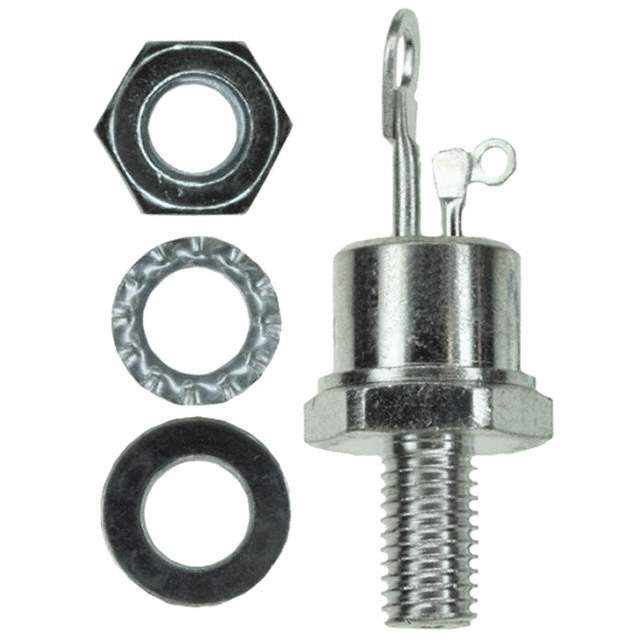

VS-2N688 Real Image
Same model may have multiple batches, images only for reference.

VS-2N688

Part No VS-2N688
Manufacturer Vishay
Catalog SCRs - Single
Description SCR PHASE CONT 400V 25A TO-48
Datasheet
VS-2N688 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 40mA
Voltage - On State (Vtm) (Maximum) 2V
Current - On State (It (AV)) (Maximum) 16A
Current - On State (It (RMS)) (Maximum) 25A
Current - Hold (Ih) (Maximum) 20mA
Current - Off State (Maximum) 4mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 145A, 150A
SCR Type Standard Recovery
Operating Temperature Range -65°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AA, TO-48-3, Stud
Manufacturer Package TO-208AA (TO-48)
Win Source Part Number 762316-VS-2N688
Popularity Medium
Supply and Demand Status Limited
Family Name VS-2N688
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-2N688 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-2N688 is a standard recovery SCR type electronic component.

  • Voltage Off State: 400V
  • Maximum Current: 25A
  • Gate Trigger Voltage: 2V
  • Maximum Gate Trigger Current: 40mA
  • Current Hold Maximum: 20mA
  • Voltage On State Maximum: 2V
  • Maximum Current On State: 16A
  • Maximum Current Off State: 4mA
  • Package: TO-208AA, TO-48-3, Stud
  • Mounting Options: Chassis, Stud Mount
