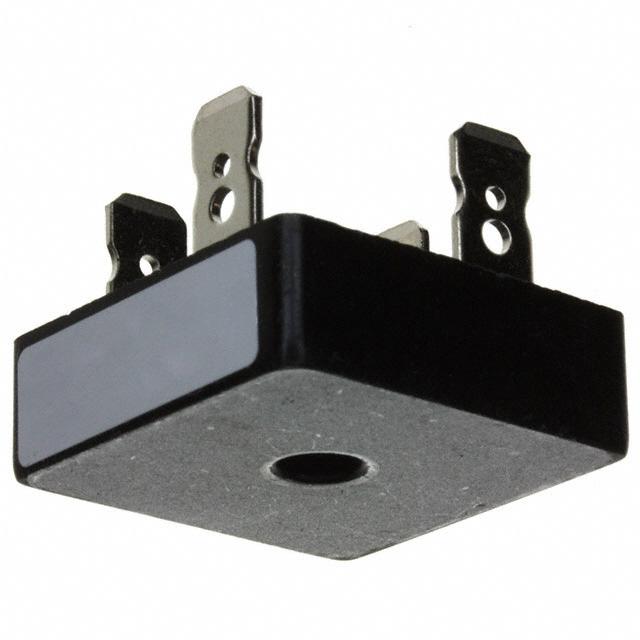

VS-36MB120A Vishay
Same model may have multiple batches, images only for reference.

VS-36MB120A

Part No VS-36MB120A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 1200V 35A D-34A
Datasheet
VS-36MB120A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1200V
Current - Average Rectified (Io) 35A
Current - Reverse Leakage @ Vr 10μA @ 1200V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting QC Terminal
Case / Package D-34
Win Source Part Number 1005240-VS-36MB120A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VS-36MB120A CAD Model

Description

The VS-36MB120A is a single phase diode.

  • Voltage Rating: 1200V
  • Average Rectified Current: 35A
  • Current Leakage: 10μA @ 1200V
  • Operating Temperature: -55°C to 150°C
  • Package: D-34
