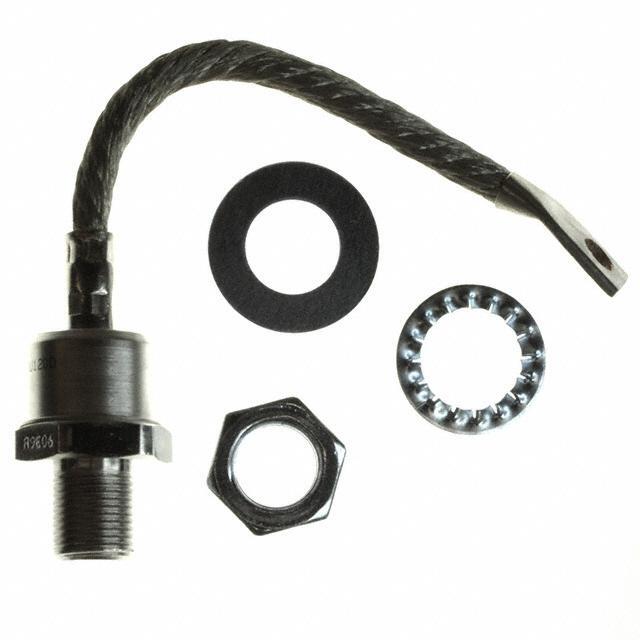

Same model may have multiple batches, images only for reference.
VS-400UR80D Vishay
Same model may have multiple batches, images only for reference.

VS-400UR80D

Part No VS-400UR80D
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 800V 400A DO205AB
Datasheet
VS-400UR80D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 800V
Current - Average Rectified (Io) 400A
Voltage - Forward (Vf) (Maximum) @ If 1.62V @ 1500A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 15mA @ 800V
Mounting Chassis, Stud Mount
Package DO-205AB, DO-9, Stud
Manufacturer Package DO-205AB, DO-9
Operating Temperature - Junction -40°C ~ 200°C
Win Source Part Number 763522-VS-400UR80D
Popularity Medium
Supply and Demand Status Limited
Family Name VS-400UR80D
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-400UR80D CAD Model

Description

The Vishay Semiconductor Diodes Division VS-400UR80D is a diode.

  • Series: Discrete Semiconductor Products
  • Popularity: Medium
  • Maximum Forward Voltage: 1.62V @ 1500A
  • Maximum Reverse Voltage: 800V
  • Average Rectified Current: 400A
  • Reverse Leakage: 15mA @ 800V
