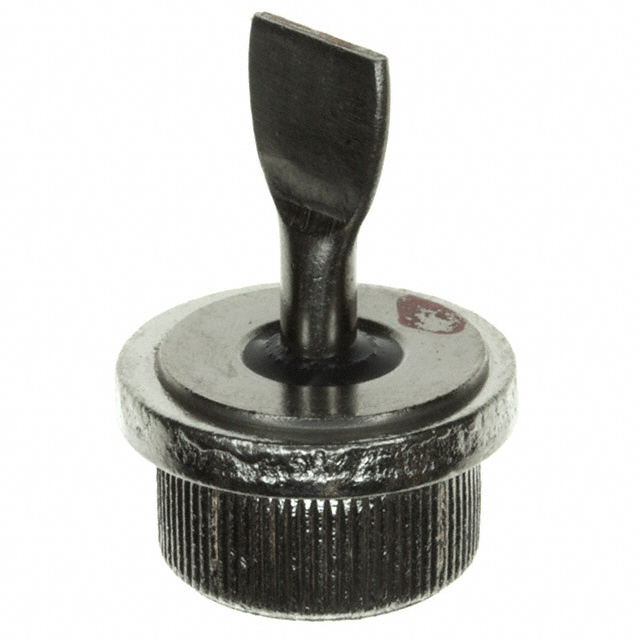

VS-8AF1NPP

Part No VS-8AF1NPP
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 50A B47
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Part Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) 50A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 7mA @ 100V
Mounting Chassis, Stud Mount
Package B-47
Manufacturer Package B-47
Operating Temperature - Junction -65°C ~ 195°C
Win Source Part Number 766410-VS-8AF1NPP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-8AF1NPP CAD Model

Description

The Vishay Semiconductor Diodes Division VS-8AF1NPP is a diode with a bulk packaging and a B-47 package.

  • Recovery Time: >500ns
  • Current Rating: > 200mA (Io)
  • Temperature Range: -65°C to 195°C
  • Obsolete: Yes
  • Manufacturer Package: B-47
  • Category: Discrete Semiconductor
  • Supply and Demand Status: Limited
