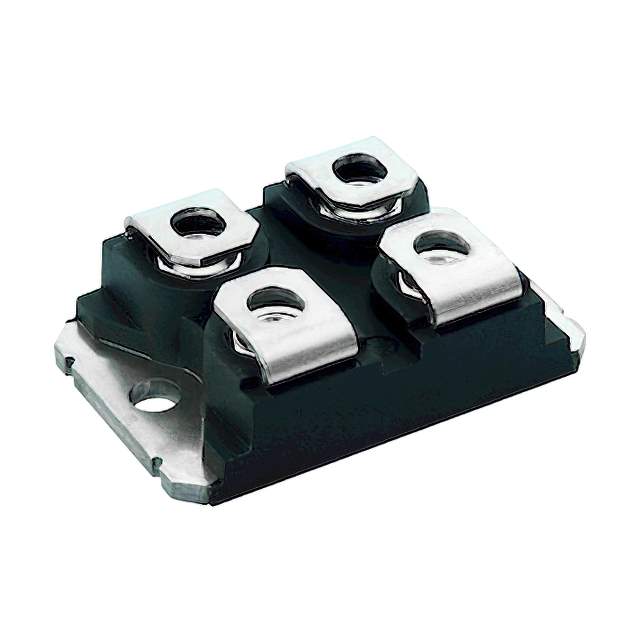

VS-FC270SA20 Real Image
Same model may have multiple batches, images only for reference.

VS-FC270SA20

Part No VS-FC270SA20
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 200V 287A SOT227 / N-Channel 200 V 287A (Tc) 937W (Tc) Chassis Mount SOT-227
Datasheet
VS-FC270SA20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 200 V
Current - Continuous Drain (Id) @ 25°C 287A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 4.7mOhm @ 200A, 10V
Vgs(th) (Max) @ Id 4.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 250 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 16500 pF @ 100 V
Power Dissipation (Max) 937W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Chassis Mount
Supplier Device Package SOT-227
Package / Case SOT-227-4, miniBLOC
Base Product Number FC270
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1339420-VS-FC270SA20
Ultra Librarian 3D Model Ultra Librarian VS-FC270SA20 CAD Model

Description

The FC270SA20 is an N-Channel MOSFET transistor that is designed for use in various applications such as switching power supplies, DC-DC converters, motor drives, and other power switching applications.

  • Drain-to-Source Voltage (Vdss): 200V
  • Power Dissipation (Tc): 937W
  • Rds On (Max): 4.7mOhm @ 200A, 10V
  • Input Capacitance (Ciss): 16500 pF @ 100V
  • Mounting: Chassis Mount

The FC270SA20 is a high-performance MOSFET transistor that is ideal for use in high-power applications.
