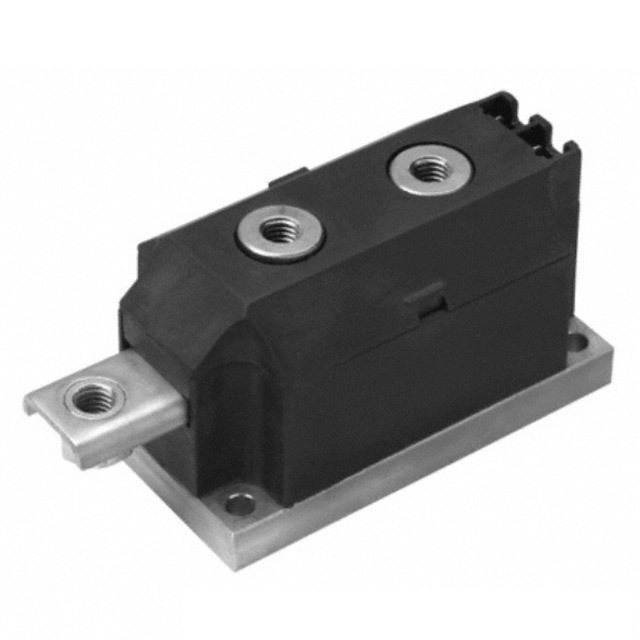

VSKD250-08 Vishay
Same model may have multiple batches, images only for reference.

VSKD250-08

Part No VSKD250-08
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 800V 250A MAGNAPAK / Diode Switching 800V 250A 3-Pin MAGN-A-PAK
Datasheet
VSKD250-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Part Status Obsolete(EOL)
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 800V
Current - Average Rectified (Io) (per Diode) 250A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50mA @ 800V
Mounting Chassis Mount
Package 3-MAGN-A-PAK
Manufacturer Package MAGN-A-PAK
Win Source Part Number 777096-VSKD250-08
Popularity Medium
Supply and Demand Status Limited
Family Name VSKD250-08
Introduction Date November 04, 2008
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VSKD250-08 CAD Model

Description

The VSKD250-08 is a standard diode manufactured by Vishay Semiconductor Diodes Division.

  • Current Rating: 250A
  • Package: 3-MAGN-A-PAK
  • Mounting: Chassis Mount
