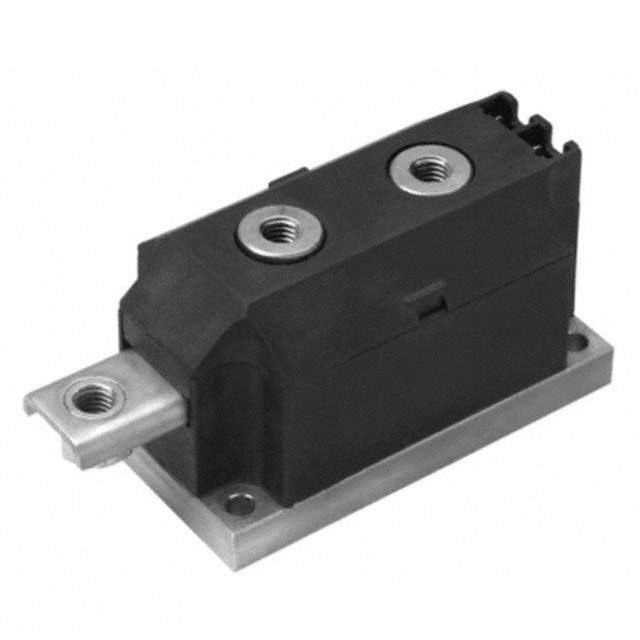

VSKT250-14

Part No VSKT250-14
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description SCR DBL HISCR 1400V 230A MAGNPAK
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Part Status Obsolete(EOL)
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1400V
Current - On State (It (AV)) (Maximum) 250A
Current - On State (It (RMS)) (Maximum) 555A
Voltage - Gate Trigger (Vgt) (Maximum) 3V
Current - Gate Trigger (Igt) (Maximum) 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 8500A, 8900A
Current - Hold (Ih) (Maximum) 500mA
Mounting Chassis Mount
Package 3-MAGN-A-PAK
Win Source Part Number 777102-VSKT250-14
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VSKT250-14 CAD Model

Description

The VSKT250-14 is a series connection SCR manufactured by Vishay Semiconductor Diodes Division.

  • Voltage Off State: 1400V
  • Maximum On-State Current: 555A
  • Mounting Type: Chassis Mounting
  • Packaging: Bulk
  • Status: Obsolete, Limited Supply and Demand
  • Application: Discrete Semiconductor Products
