Same model may have multiple batches, images only for reference.

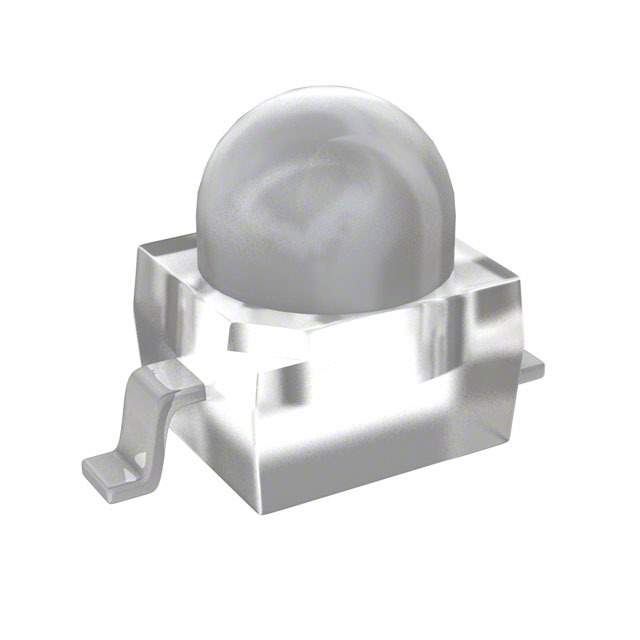

VSMB2020X01 Real Image
Same model may have multiple batches, images only for reference.

VSMB2020X01

Part No VSMB2020X01
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA SMD
Datasheet
VSMB2020X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 20mW/sr @ 100mA
Wavelength 940nm
Forward Voltage 1.35V
Viewing Angle 24°
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Dimension 2-SMD, Gull Wing
Win Source Part Number 084045-VSMB2020X01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VSMB2020X01 CAD Model

Description

The Vishay VSMB2020X01 is an infrared (IR) type LED with a viewing angle of 24° and a wavelength of 940nm.

  • Viewing Angle: 24°
  • Wavelength: 940nm
  • Minimum Radiant Intensity: 20mW/sr @ 100mA
  • Forward Voltage: 1.35V
  • Continuous Forward Current: 100mA
