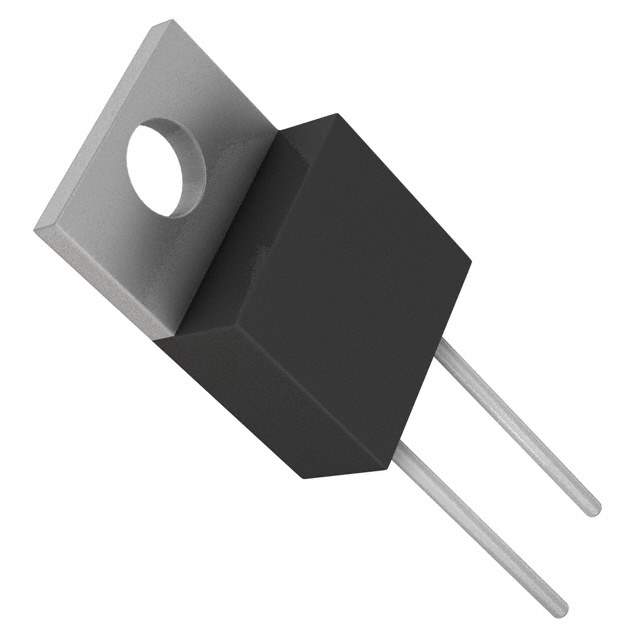

VT5202-M3/4W Real Image
Same model may have multiple batches, images only for reference.

VT5202-M3/4W

Part No VT5202-M3/4W
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 5A TO220AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 200V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Maximum) at If 880mV at 5A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 150μA at 200V
Capacitance at Vr, F 1216pF at 4V, 1MHz
Mounting Style Through Hole
Manufacturer Package TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction -40°C ~ 175°C
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805447-VT5202-M3/4W
Ultra Librarian 3D Model Ultra Librarian VT5202-M3/4W CAD Model

Description

The VT5202-M3/4W is a fast recovery Schottky diode used for rectification from Vishay Semiconductor Diodes Division.

  • Supplier Device Package: TO-220AC
  • Manufacturer Package: TO-220-2
  • Reverse Voltage: 200V
  • Forward Voltage: 880mV @ 5A
  • Current Leakage: 150μA @ 200V
  • Capacitance: 1216pF @ 4V, 1MHz
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1 (unlimited)
