Same model may have multiple batches, images only for reference.

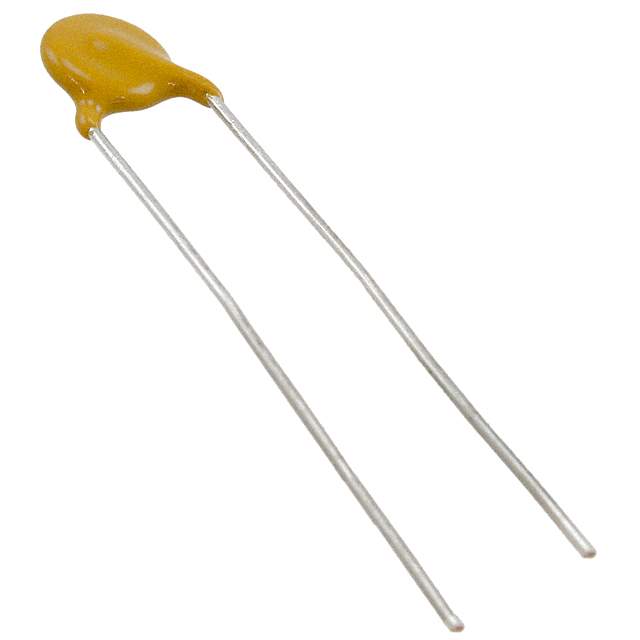

VY1332M59Y5UQ6BV0A Real Image
Same model may have multiple batches, images only for reference.

VY1332M59Y5UQ6BV0A

Part No VY1332M59Y5UQ6BV0A
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 3300PF 760VAC Y5U RADIAL / 3300 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet
VY1332M59Y5UQ6BV0A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series VY1
Package Bulk
Capacitance 3300 pF
Tolerance ±20%
Voltage - Rated 760VAC
Temperature Coefficient Y5U (E)
Temperature Range - Operating -40°C ~ 125°C
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.591" Dia (15.00mm)
Height - Seated (Max) 0.748" (19.00mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Standard Package 1,000
Win Source Part Number 963050-VY1332M59Y5UQ6BV0A
Ultra Librarian 3D Model Ultra Librarian VY1332M59Y5UQ6BV0A CAD Model

Description

The 963050-VY1332M59Y5UQ6BV0A is a ceramic capacitor with a capacitance of 3300 pF and a voltage rating of 760VAC.

  • Capacitance: 3300 pF
  • Voltage: 760VAC
  • Tolerance: ±20%
  • Temperature Coefficient: Y5U (E)
  • Series: VY1
  • Application: Safety
  • Package: Bulk
  • Height: 0.748" (19.00mm)
  • Size: Radial, disc
  • Lead Spacing: 0.394" (10.00mm)
  • Lead Style: Formed leads - kinked
  • Dimension: 0.591" Dia (15.00mm)
  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • ECCN: EAR99
  • MSL: Not applicable
  • REACH: Unaffected
  • HTSUS Code: 8532.23.0060
