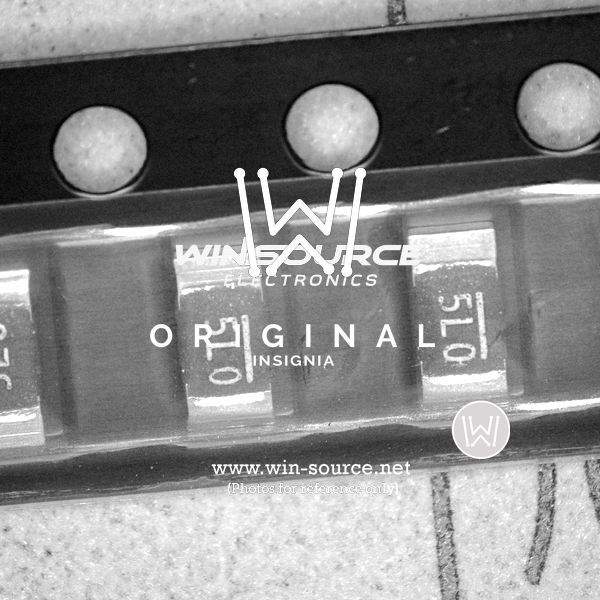

WSL12065L000FEA18 Real Image WSL12065L000FEA18 real image13830
Same model may have multiple batches, images only for reference.
WSL12065L000FEA18 Real Image WSL12065L000FEA18 real image13830
WSL12065L000FEA18 Real Image WSL12065L000FEA18 real image13830
Same model may have multiple batches, images only for reference.

WSL12065L000FEA18

Part No WSL12065L000FEA18
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description Power Metal Strip® Resistors, High Power (2 x Standard WSL), Low Value (down to 0.001 Ω), Surface Mount
Datasheet
WSL12065L000FEA18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Dale
Series WSL-HP
Packaging Reel - TR
Resistance (Ohms) 0.005
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±110ppm/°C
Operating Temperature Range -65°C ~ 170°C
Package 1206 (3216 Metric)
Manufacturer Package 1206
Size 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Maximum) 0.035" (0.89mm)
Number of Terminations 2
Win Source Part Number 1280626-WSL12065L000FEA18
Manufacturer Homepage www.vishay.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian WSL12065L000FEA18 CAD Model

Description

The Vishay Dale WSL-HP 1280626-WSL12065L000FEA18 is a metal element resistor that is designed for use in current sensing applications.

  • Manufacturer: Vishay Dale WSL-HP
  • Case/Package: 1206 (3216 Metric)
  • Packaging: reel - TR
  • Tolerance: ±1%
  • Temperature Coefficient: ±110ppm/°C
  • Power Rating: 0.5W, 1/2W
  • Resistance: 0.005 ohms
  • Terminations: 2
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Temperature Range: -65°C to 170°C
  • Application: automotive AEC-Q200
  • Features: moisture resistant and pulse withstanding
