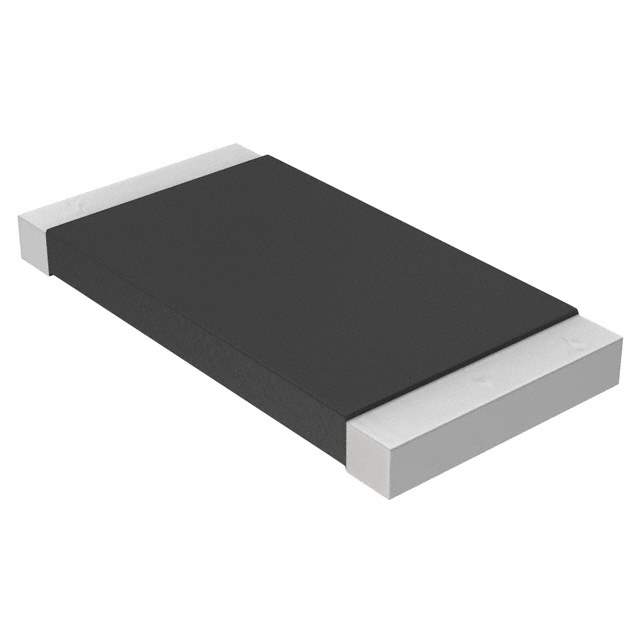

WSL2512R0140FEA18 Real Image
Same model may have multiple batches, images only for reference.

WSL2512R0140FEA18

Part No WSL2512R0140FEA18
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.014 OHM 1% 2W 2512 / 14 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSL2512R0140FEA18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 14 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max) 0.035" (0.89mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number WSLH-.014TR,WSLH-.014DKR,WSLH-.014CT
Standard Package 2,000
Win Source Part Number 1327279-WSL2512R0140FEA18
Ultra Librarian 3D Model Ultra Librarian WSL2512R0140FEA18 CAD Model

Description

The Vishay Dale WSL2512R0140FEA18 is a surface mount chip resistor.

  • Resistance: 14mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Power Rating: 2W
  • Composition: Metal element
  • Terminations: 2
  • Package Type: 2512 (6432 Metric)
  • Packaging: Reel
  • AEC-Q200 Rated: Yes, for automotive applications
  • Moisture-resistant: Yes
  • Pulse-withstanding: Yes
  • Operating Temperature Range: -65 to 170 degrees Celsius
  • ROHS3 Compliant: Yes
